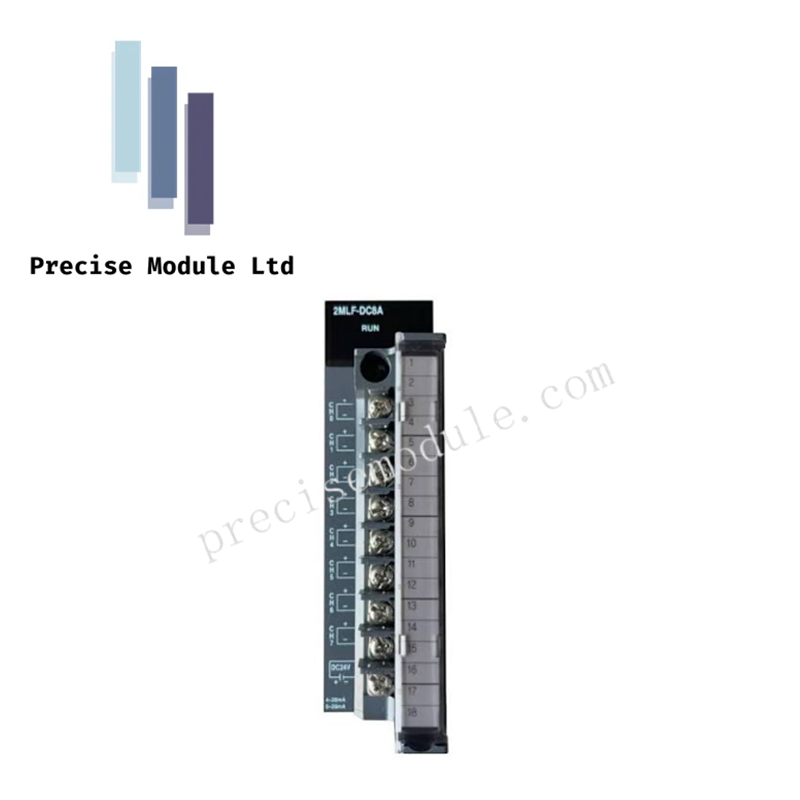

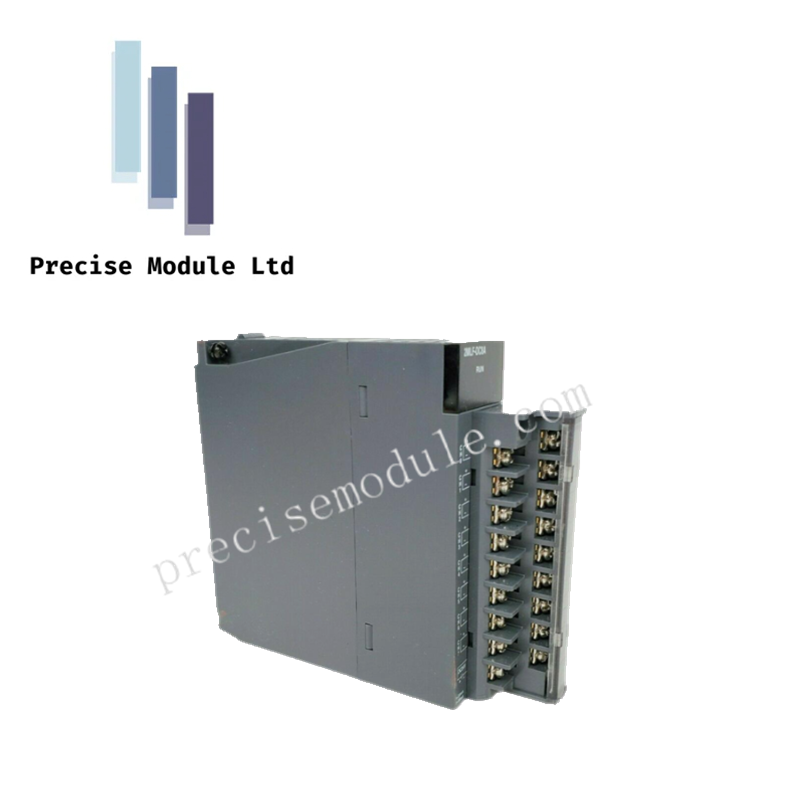

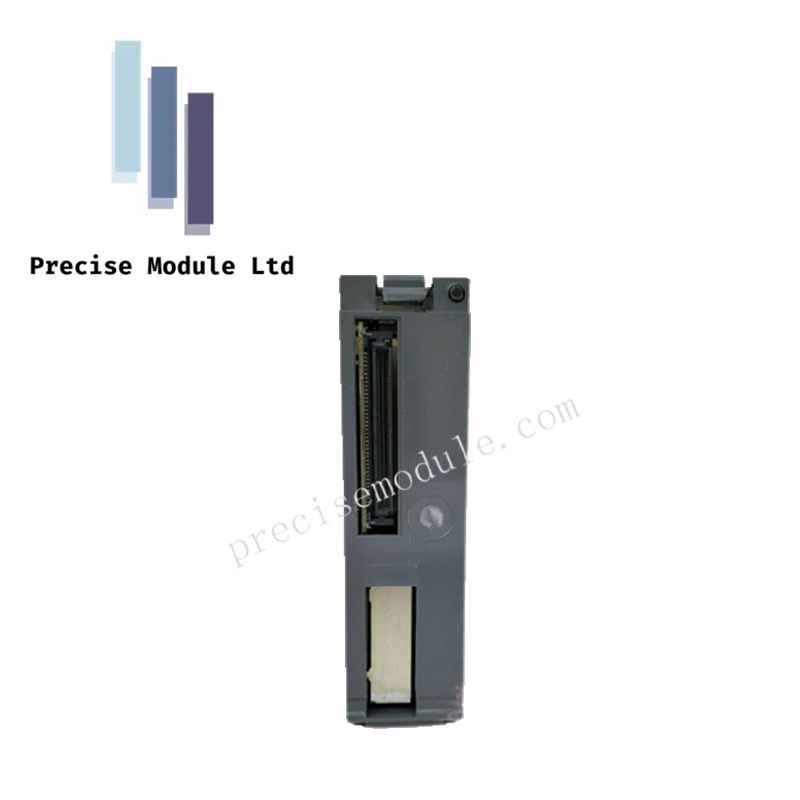

Honeywell 2MLF-DC8A Analog Output Module

Honeywell 2MLF-DC8A Analog Output Module

The Honeywell 2MLF-DC8A, also cataloged as the 2MLF-DC8A analog output module, operates as a dedicated hardware component for deterministic 4–20 mA and 0–20 mA current‑loop generation within Honeywell MasterLogic platforms.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel Isolation

Within Honeywell’s process‑control architecture, the module maintains stable 4–20 mA loop behavior through channel‑to‑channel isolation and deterministic output scheduling. Each output channel supports independent range selection via program parameters, ensuring predictable loop drive under varying load conditions. The isolation design minimizes conductive coupling between adjacent channels, reducing noise propagation and maintaining stable analog output resolution across mixed wiring bundles.

Frequently Asked Questions

Q: Can the module be hot‑swapped during operation? A: Mechanical insertion may be possible depending on the chassis, but live replacement risks output interruption. A safe‑state shutdown is recommended.

Q: Does load resistance affect output accuracy? A: Yes. Loads above 550 ohm may cause output saturation or reduced compliance voltage, affecting loop integrity.

Q: Are firmware updates required for output‑range selection? A: No. Range selection is handled through controller parameters. The module itself does not require firmware alignment.

Field Installation Guidelines

Route analog wiring separately from high‑voltage conductors to minimize induced noise. Maintain proper shield grounding at a single point to prevent circulating currents. Verify loop continuity and output compliance using a calibrated milliamp source before commissioning. Ensure terminal screws are tightened uniformly to maintain stable conductor compression. Avoid exceeding the specified load resistance to prevent output clipping.
