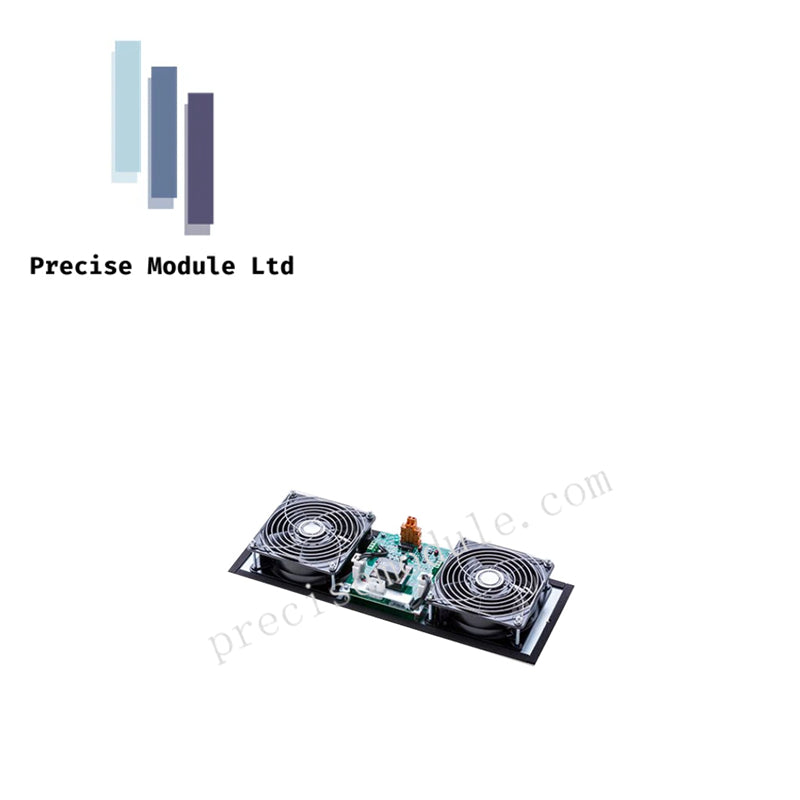

Honeywell 51401473-100 Dual Fan Module

Honeywell 51401473-100 Dual Fan Module

Configured for thermal management and chassis cooling within Honeywell control system platforms, the Honeywell 51401473-100 (51401473 Dual Fan Module) provides direct airflow generation for heat dissipation inside installed control racks and node assemblies. The module incorporates dual fan elements and is designed for installation in dedicated Honeywell rack or slot locations to support continuous electronic equipment operation.

Hardware Specifications

Channel Isolation and Thermal Management Functions

The 51401473-100 is intended to maintain airflow across installed electronic assemblies and control system components. Proper thermal management helps maintain stable operating conditions for processors, communication modules, power supplies, and I/O hardware installed within the enclosure.

In distributed control system architectures, cooling assemblies contribute indirectly to signal stability by maintaining component operating temperatures within their specified ranges. Consistent airflow assists in reducing localized heat accumulation around densely populated control hardware and supports long-term electronic performance.

The dual-fan arrangement provides airflow distribution across the associated chassis section and is designed for integration into designated Honeywell rack structures.

Frequently Asked Questions

Q: Does the 51401473-100 perform any control or signal-processing functions?
A: No. The module functions as a cooling assembly and provides airflow for thermal management of installed control system hardware.

Q: Is the module designed for installation in a dedicated rack position?
A: Yes. The fan assembly is intended to slide directly into compatible Honeywell control system rack or node locations.

Q: Can the module operate independently outside the intended chassis?
A: The supplied documentation identifies the unit as a rack-integrated cooling assembly. Installation should follow the mechanical and electrical requirements of the compatible Honeywell platform.

Field Installation Guidelines

• Verify that the target rack slot is designated for fan assembly installation.
• Inspect air inlets and exhaust paths for obstructions before energizing the system.
• Ensure adequate clearance around ventilation openings to maintain unrestricted airflow.
• Route wiring away from rotating fan components and airflow channels.
• Confirm that mounting hardware and retaining mechanisms are fully engaged after installation.
• Periodically inspect fan assemblies for dust accumulation that could reduce cooling performance.
• Replace damaged fan assemblies promptly if abnormal vibration, noise, or airflow degradation is observed.
