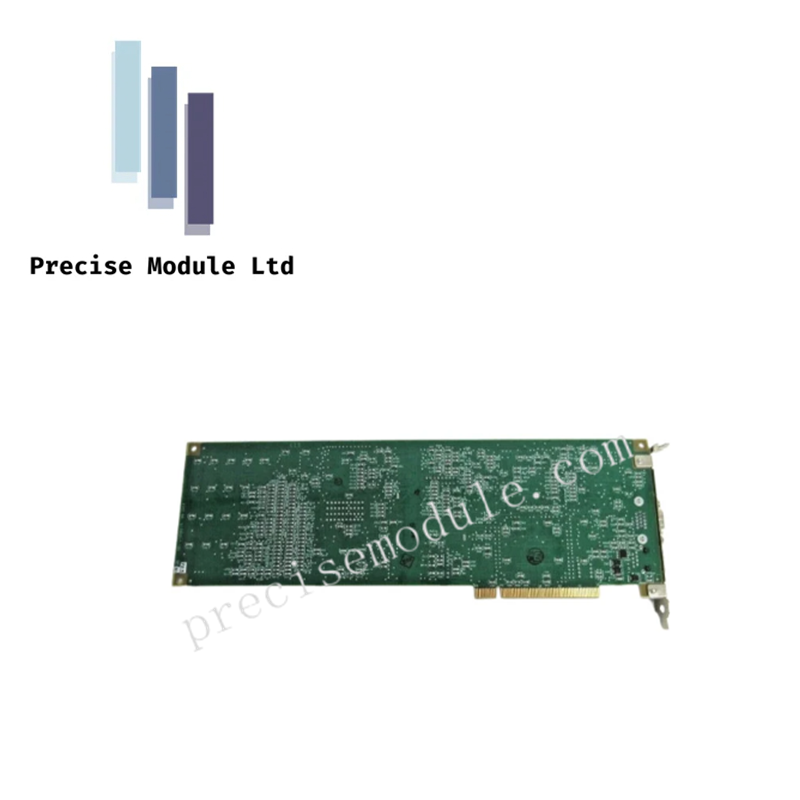

Honeywell 51402797-200 Analog Input Module

Product Overview

The 51402797-200 (51402797-200) is a specialized Distributed Control System (DCS) interface component engineered for the Honeywell automation ecosystem. This module serves as a critical communication bridge, facilitating high-speed and reliable data exchange between field-level instrumentation and the central Honeywell control processors. Featuring a streamlined "paddle board" form factor, the 51402797-200 is designed for high-density mounting within control cabinets, providing a robust physical and electrical connection point that simplifies both initial system integration and long-term hardware maintenance.

Technical Specifications

• Module Identification 51402797-200

• Functional Category DCS Data Interface / Paddle Board

• Architecture Support Compatible with multiple Honeywell DCS platforms (Experion/TDC)

• Connectivity Profile Specialized paddle board interface for secure bus attachment

• Physical Depth 23.8 cm

• Physical Height 13.5 cm

• Physical Width 2.0 cm (Slim profile)

• Net Weight 0.24 kg

• Origin Manufactured in the United States

• Operational Design Rated for continuous 24/7 industrial duty cycles

• Standard Warranty 12 to 24 months (Distributor dependent)

• Product Condition Original, factory-new hardware

System Capabilities & Benefits

The 51402797-200 (51402797-200) is built to maintain the rigorous uptime requirements of modern process industries:

• Stable Data Throughput Optimized for noise-resistant communication between the field and the control room.

• Cabinet Optimization The ultra-slim 2 cm width allows engineers to maximize I/O density in space-constrained rack environments.

• Streamlined Maintenance The paddle board design allows for quick inspection and secure cable termination, reducing mean time to repair (MTTR).

• Industrial Hardening Built with high-grade materials to resist the vibration and thermal fluctuations typical of industrial control rooms.
