Honeywell 620-0086 Parallel Link Driver Module

Honeywell 620-0086 Parallel Link Driver Module

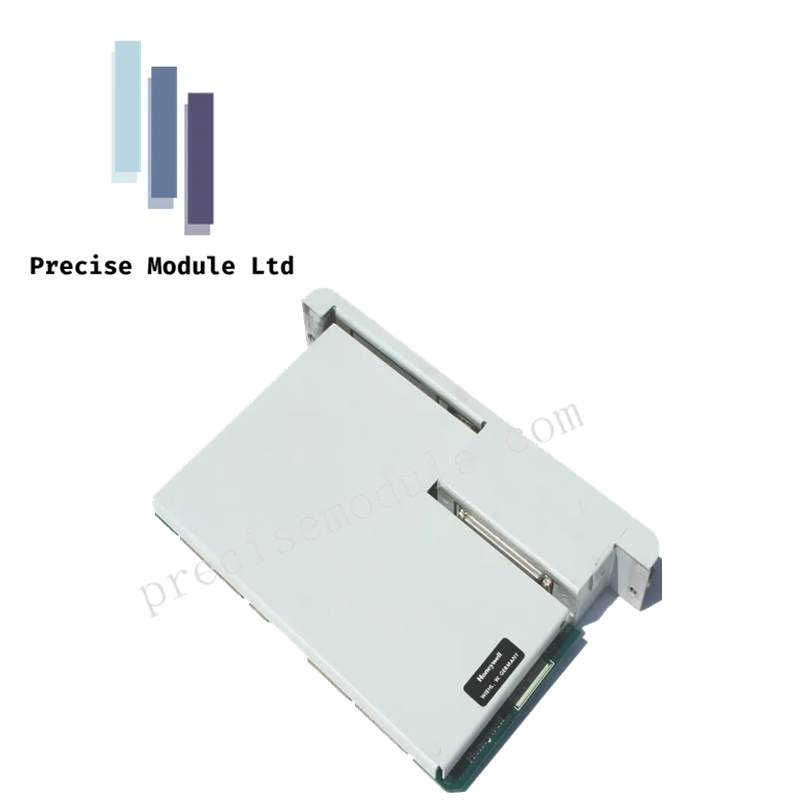

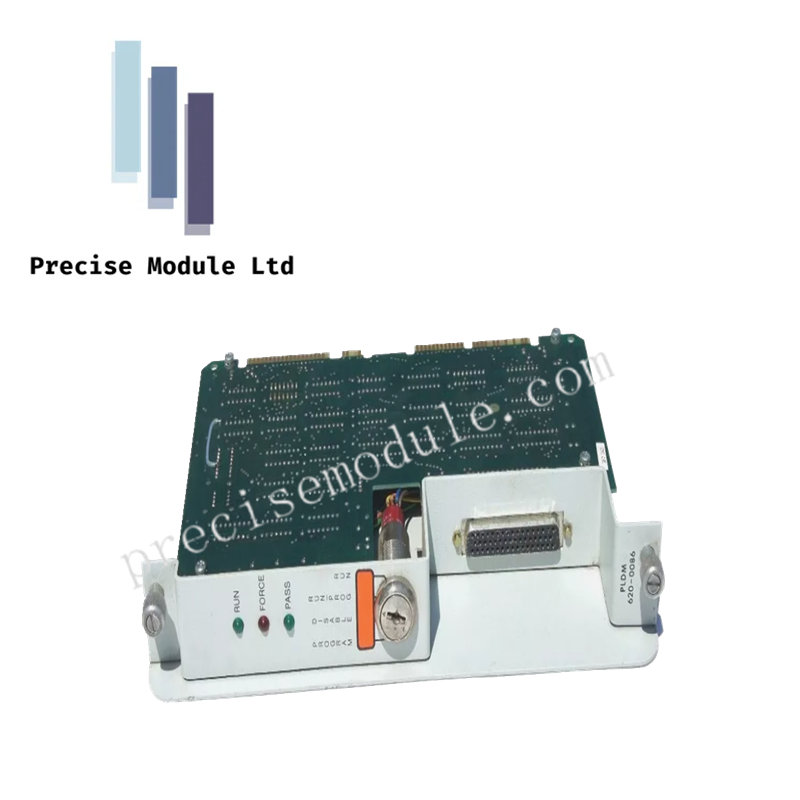

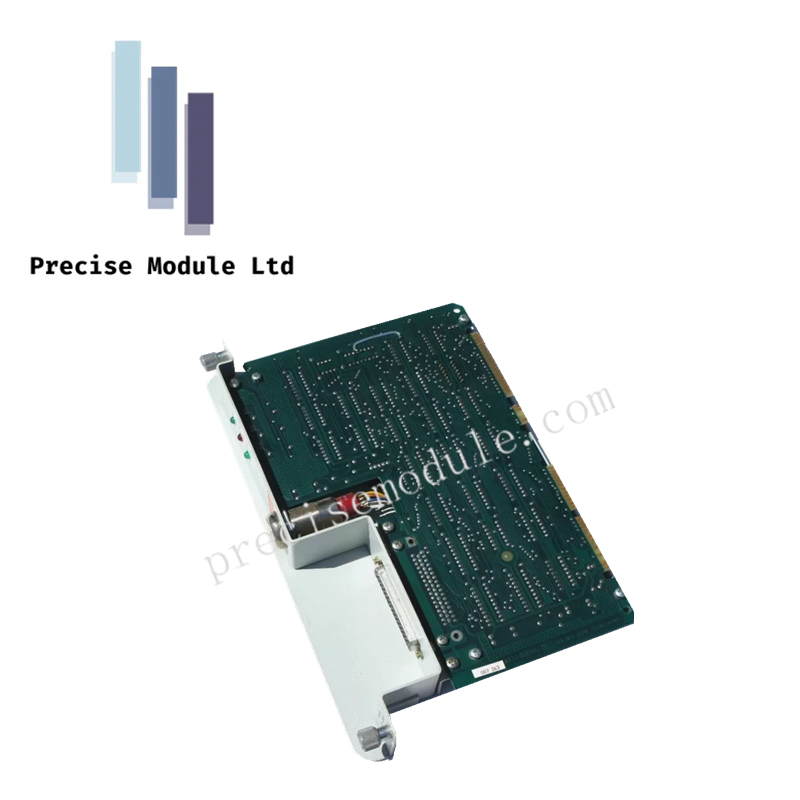

The Honeywell 620-0086 Parallel Link Driver Module is a communication interface module designed for IPC 620 Series control systems. It provides the parallel communication link between the processor rack and remote or expansion I/O racks, enabling high-speed data exchange between controllers and distributed I/O subsystems. The module is used in architectures that require extended I/O capacity while maintaining coordinated operation across multiple rack locations.

Product Specifications

Communication Function

The 620-0086 is responsible for driving the parallel communication link used within IPC 620 control architectures. It transfers process data, control information, and status updates between the processor rack and connected I/O subsystems.

By supporting remote rack connectivity, the module allows I/O equipment to be distributed throughout the control system while remaining under the supervision of a central controller.

System Integration

The module is designed for use with Honeywell IPC 620 Series PLC platforms, including IPC 620-10, IPC 620-15, IPC 620-20, IPC 620-25, and IPC 620-35 controllers.

In expanded control systems, the module enables communication with remote I/O racks, allowing additional input and output capacity to be added without relocating the processor hardware.

Parallel Link Architecture

Communication is performed through a dedicated parallel link connection using specialized shielded interconnecting cables. This architecture is intended to provide deterministic data exchange between processing and I/O resources within the control system.

Correct cable installation and routing are important to maintain signal integrity, particularly in electrically noisy industrial environments.

Installation Characteristics

The module installs directly into a designated slot within an IPC 620 processor rack or expansion rack. Once installed, it becomes part of the system communication infrastructure and operates in conjunction with compatible rack and I/O hardware.

The single-slot format simplifies integration into existing IPC 620 installations where remote I/O expansion is required.

Environmental Performance

The specified operating temperature range of 0 deg C to 60 deg C allows deployment in typical industrial control cabinets. Storage temperatures from -40 deg C to +85 deg C support transportation and spare-parts inventory requirements.

A humidity rating of 5% to 95% non-condensing helps ensure reliable operation when installed in properly protected control environments.

Frequently Asked Questions

Q: What is the main purpose of the Honeywell 620-0086 module?

A: The 620-0086 functions as a Parallel Link Driver Module that transfers data between IPC 620 processors and remote or expansion I/O racks.

Q: Which IPC 620 controllers are compatible with this module?

A: Available information identifies compatibility with IPC 620-10, IPC 620-15, IPC 620-20, IPC 620-25, and IPC 620-35 systems.

Q: Can the module be used for remote I/O expansion?

A: Yes. The module is designed to support communication links that extend processor access to remote or expansion I/O racks within IPC 620 architectures.
