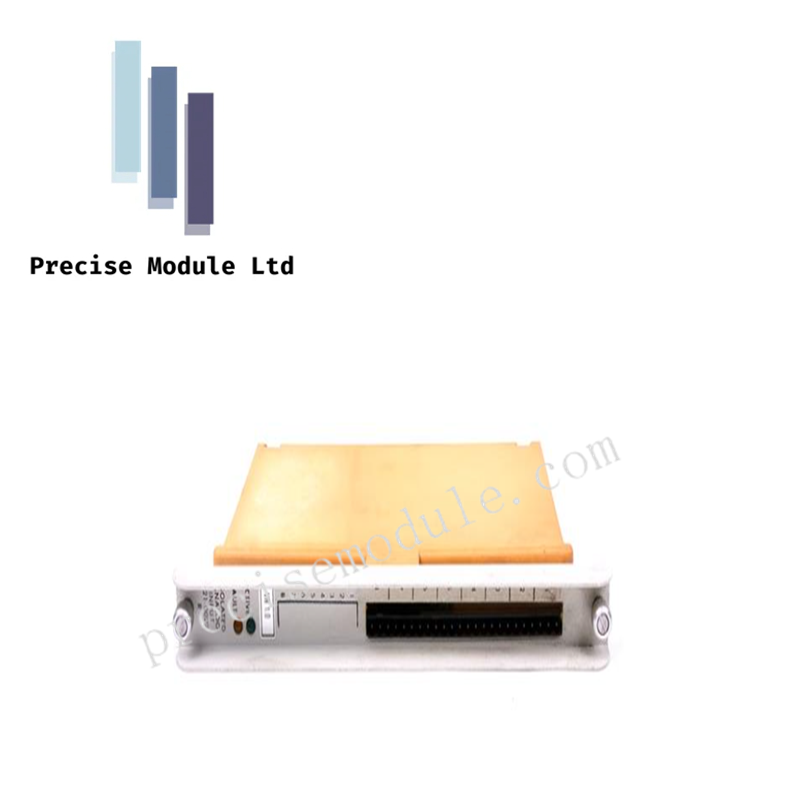

Honeywell 621-0022 Isolated Analog Input Module

The Honeywell 621-0022 Isolated Analog Input Module is an 8-channel analog input module for Honeywell IPC 620 PLC systems. It acquires voltage and current signals from field instruments and provides channel isolation to reduce ground-loop interference and electrical noise in industrial control applications.

Signal Inputs

The module supports multiple high-level analog input ranges configurable through hardware settings:

• 4-20 mA

• 0-20 mA

• 1-5 VDC

• 0-10 VDC

• ±10 VDC

Channel-to-channel and channel-to-logic isolation help improve measurement reliability when connecting signals from different field devices.

Hardware Features

The module installs directly into a Honeywell IPC 620 I/O rack and converts field analog signals for controller processing.

Front-panel LED indicators provide operating and fault status information for diagnostics and maintenance.

Technical Specifications

Installation Notes

The module is designed for installation in a standard IPC 620 I/O rack and receives operating power through the system backplane. Input range configuration should match the connected transmitter or signal source before commissioning.

Frequently Asked Questions

Q: How many analog inputs does the 621-0022 support?

A: The module provides 8 independently isolated analog input channels.

Q: What signal types can be connected to this module?

A: Supported inputs include 4-20 mA, 0-20 mA, 1-5 VDC, 0-10 VDC, and ±10 VDC signals.

Q: Why is input isolation important?

A: Electrical isolation helps reduce ground-loop effects and signal interference between field circuits and the PLC system.
