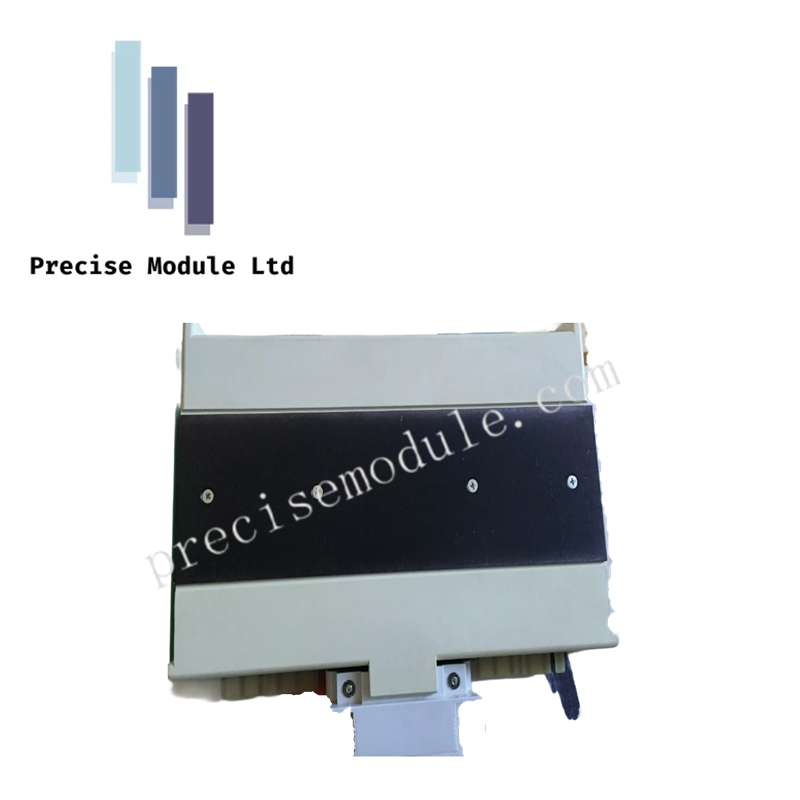

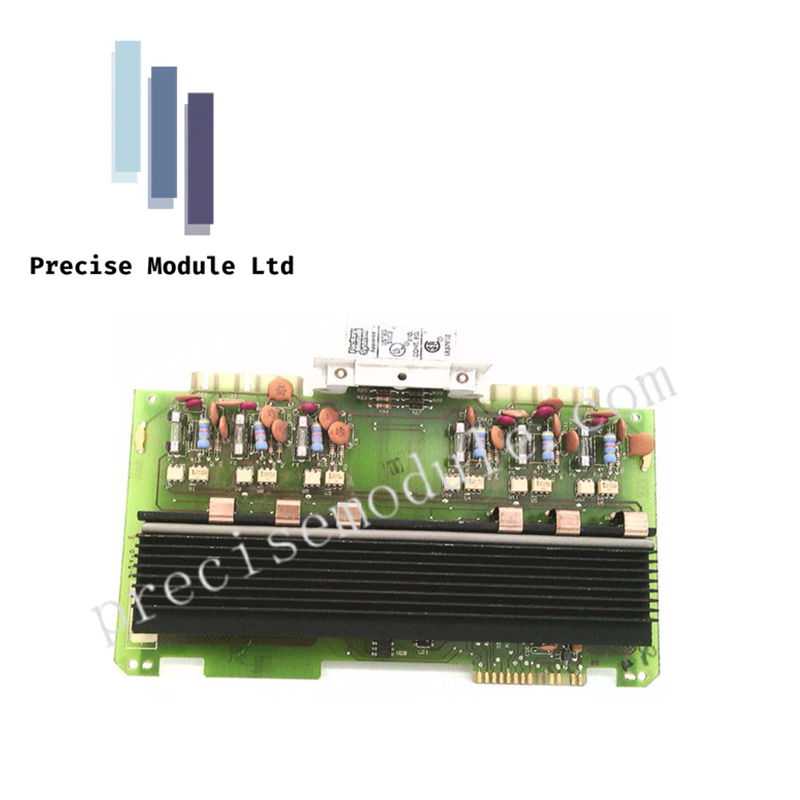

Honeywell 621-2201R Digital Output Module

Honeywell 621-2201R Digital Output Module

The Honeywell 621-2201R, also cataloged as the 621-2201R Digital Output Module, operates as a dedicated hardware component for AC load switching and discrete output control within Honeywell IPC 620 and compatible distributed control system architectures. The module provides six individually isolated output channels capable of driving field devices such as contactors, motor starters, solenoids, and valve control circuits.

Hardware Specifications

Channel-to-Channel Isolation Characteristics

The 621-2201R incorporates isolated output circuitry between field-side AC loads and control-system logic. The specified 1500 VAC field-to-logic isolation barrier reduces electrical coupling between process wiring and controller electronics.

Each of the six output channels is equipped with independent status indication, allowing verification of output state during commissioning and maintenance activities. The module is designed for switching AC-powered field devices including contactors, relays, motor control circuits, and electrically actuated valve assemblies.

Isolation between field and logic sections assists in minimizing the propagation of electrical disturbances originating from inductive load switching events commonly encountered in industrial process applications.

Frequently Asked Questions

Q: How many field devices can be controlled by the 621-2201R module?
A: The module provides six independent isolated digital output channels, allowing control of up to six discrete AC field circuits.

Q: What is the maximum output current capacity?
A: Each channel is rated for 2 A, while the total module current shall not exceed 8 A.

Q: Does the module provide electrical isolation from the control system?
A: Yes. The module provides 1500 VAC field-to-logic isolation between output circuits and controller electronics.

Field Installation Guidelines

• Verify that connected field loads operate within the specified 170 VAC to 250 VAC output voltage range.
• Ensure total module loading does not exceed the 8 A aggregate current rating.
• Route output wiring separately from low-level analog signal circuits to reduce electrical interference.
• Use appropriately rated terminal hardware and conductors for the connected load current.
• Confirm output status LEDs correspond with commanded controller states during commissioning.
• Maintain proper grounding practices for associated control panels and field equipment.
• Inspect field terminals periodically for looseness, heat discoloration, or insulation degradation.
