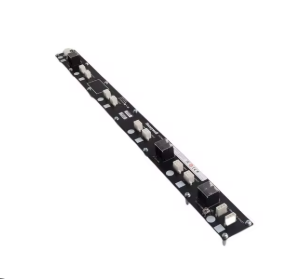

Honeywell 8C-SHEDA1 51307186-175 Header Board

Product Overview

The 8C-SHEDA1 (51307186-175) is a specialized header board engineered for the Honeywell Experion Process Knowledge System (PKS). It functions as a centralized connectivity hub, streamlining the integration of I/O modules into the larger control architecture. By providing a standardized and compact interface, this board allows for rapid hardware deployment and simplified maintenance. The unit is equipped with onboard configuration jumpers for precise parameter setting and combo connectors that handle both power distribution and high-speed I/O-Link communication between modules and the controller backplane.

Technical Specifications

• Module Designation 8C-SHEDA1 (51307186-175)

• Functional Role Header Board / Connectivity Interface

• System Environment Experion PKS (Process Knowledge System)

• AC Input Support 110 VAC or 220 VAC compatible

• DC Power Rating 24 VDC Input / 24 VDC Output

• Power Connectivity 3 Dedicated Power Connectors

• Signal Interfacing 4 pairs of 6-pin Combo Cable Connectors (Power + I/O-Link)

• Module Capacity Supports up to 8 I/O modules per board

• Addressing Logic Integrated hardware jumpers for address and parameter configuration

• Communication Interface High-speed backplane bus for controller synchronization

• Physical Depth 41 mm (1.61 in)

• Physical Height 172 mm (6.77 in)

• Physical Width 102 mm (4.02 in)

• Unit Weight 0.5 kg (1.1 lb)

Operational Capabilities

The 8C-SHEDA1 (51307186-175) is designed to optimize cabinet space while maintaining industrial-grade reliability:

• Power Management Efficiently regulates 24VDC distribution across attached I/O modules.

• Simplified Configuration Onboard jumpers eliminate the need for complex software-only addressing during initial hardware setup.

• Robust Interconnects Combo connectors reduce wiring complexity by carrying both power and data on a single cable path.

• High Density Manages up to eight modules within a compact 172mm footprint, ideal for space-constrained control rooms.
