Honeywell 8C-TDIL51 Digital Input IOTA

Honeywell 8C-TDIL51 Digital Input IOTA

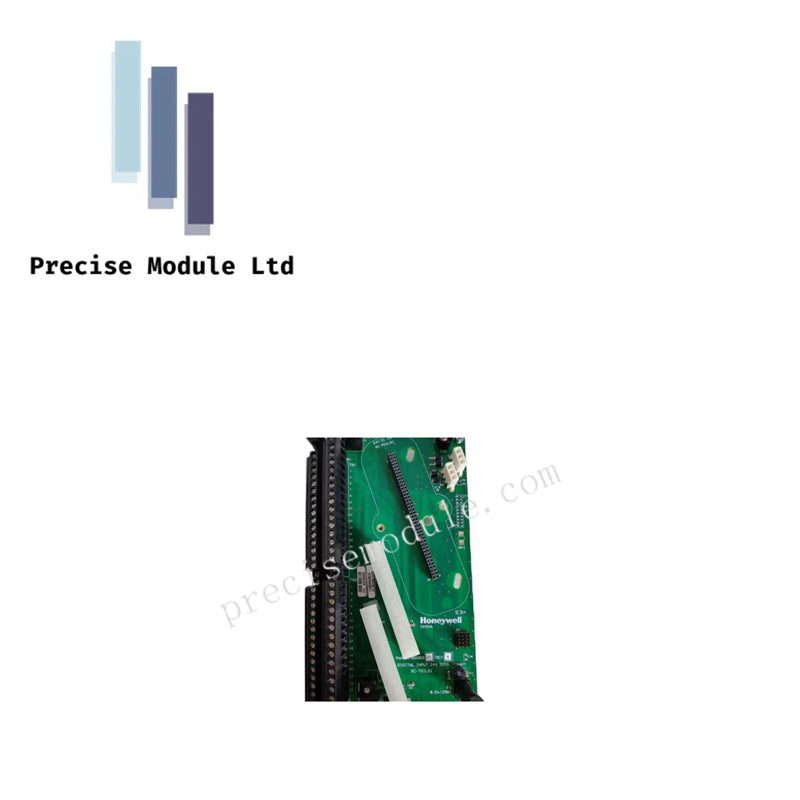

The Honeywell 8C‑TDIL51, also cataloged as the 51306969-175 Digital Input IOTA, serves as a Series 8 termination assembly for acquiring discrete 24 VDC signals in Experion PKS, PlantCruise, and C300 controller environments.

Hardware Specifications

Channel-to-Channel Isolation

The 8C‑TDIL51 incorporates channel-to-channel isolation to ensure discrete input integrity. This prevents cross‑talk between adjacent channels and maintains deterministic signal acquisition across multiple field devices. The rugged design supports long‑term operation in demanding industrial environments.

Frequently Asked Questions

Q: Can the 8C‑TDIL51 be hot‑swapped in Series 8 racks? A: Yes, the module supports removal and installation under power (RIUP) within Series 8 IOTA assemblies.

Q: What is the maximum wire gauge supported? A: The module accepts stranded wire up to 12‑AWG for field termination.

Q: Does the module require firmware updates? A: Firmware is managed at the controller level; the IOTA itself does not require independent updates.

Field Installation Guidelines

• Ensure DIN rail mounting stability before energizing.
• Use shielded cabling for input wiring to minimize EMI.
• Maintain separation of wiring between high‑voltage and low‑voltage circuits.
• Confirm backplane connector alignment to avoid bent pins.
• Observe environmental limits of -40 to +75 deg C and non‑condensing humidity up to 95%.
