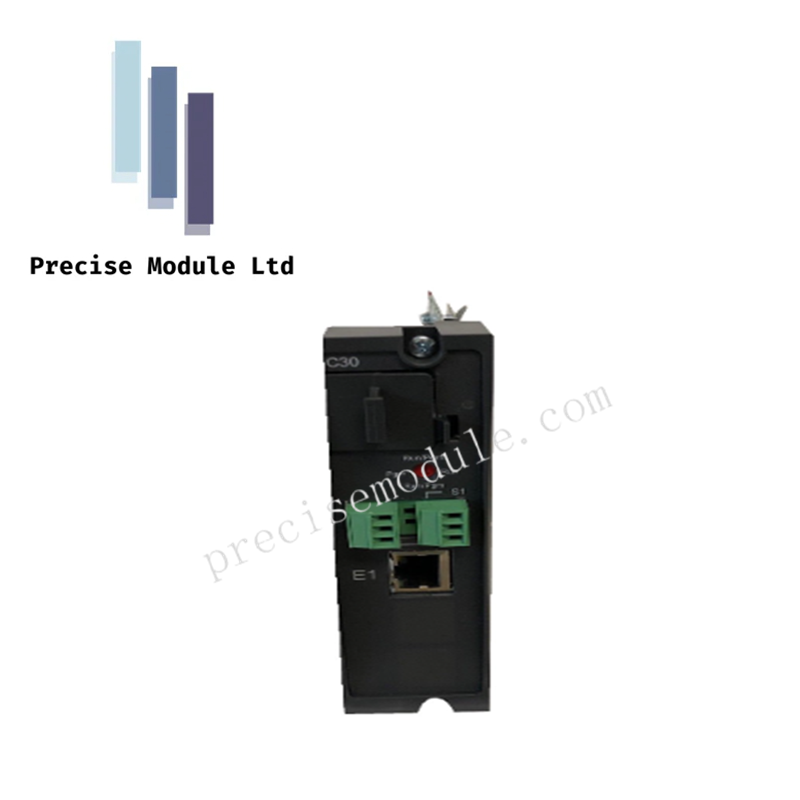

Configured for controller‑level logic execution in HC900 networks, the Honeywell 900C30S-0360-00 (900C30S-0360-00 C30S CPU module) provides direct physical/electrical processing for PID algorithms, function‑block logic, and multi‑channel I/O coordination.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel Isolation

Within Honeywell’s process‑control architecture, the CPU maintains deterministic 4‑20 mA HART loop behavior by supervising analog modules through channel‑to‑channel isolation rules and stable backplane scheduling. The CPU’s function‑block engine preserves calibration constants, loop supervision parameters, and isolation boundaries, ensuring that analog channels remain unaffected by adjacent digital or high‑level analog activity. This deterministic scheduling is critical for maintaining stable PID execution across mixed I/O densities.

Frequently Asked Questions

Q: Can the C30S CPU be hot‑swapped? A: The CPU is not designed for live replacement. Removing it will immediately halt HC900 execution. A safe‑state shutdown is required before extraction.

Q: How does the 54 ms scan rate affect mixed I/O modules? A: The CPU processes digital and analog updates within the same scan cycle. The 54 ms rate ensures predictable timing for PID loops and discrete logic.

Q: Does adding more function blocks affect communication ports? A: Function‑block load impacts CPU scheduling but does not alter physical RS‑485 or Ethernet port behavior. Communication timing is governed by the HC900 network configuration.

Field Installation Guidelines

Mount the CPU in a clean, dry enclosure with stable airflow. Maintain proper backplane seating to ensure uninterrupted communication with I/O modules. Route analog wiring separately from high‑voltage conductors to reduce noise coupling. Ground shields at a single point to prevent circulating currents. Verify Ethernet link integrity and RS‑485 termination before commissioning. Perform a controlled restart after configuration changes to validate function‑block execution.
