Honeywell CC-PAIL51 Analog Input Module Experion Series C HART

Product Description

Overview

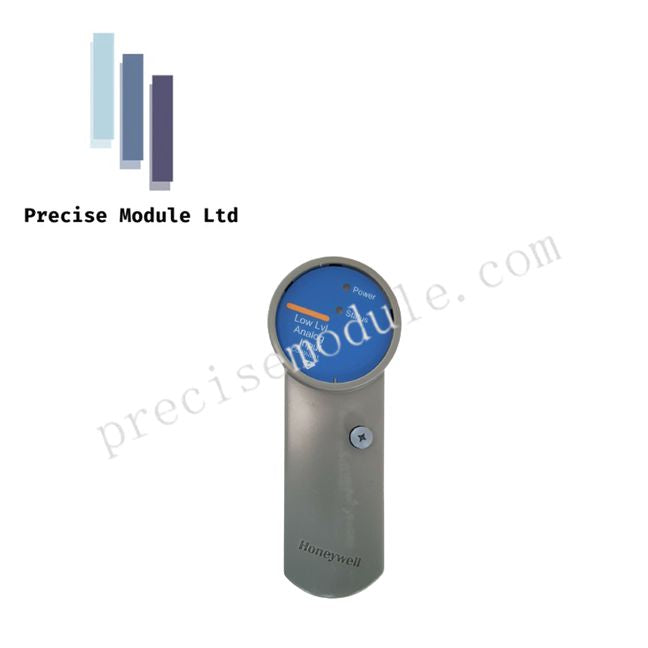

The CC-PAIL51 is a high-precision Analog Input Module designed for Honeywell’s Experion Series C I/O system. Engineered for demanding industrial environments, this module integrates HART communication, allowing simultaneous analog and digital data transfer from field sensors. Its conformally coated circuitry ensures reliable operation in harsh conditions.

Key Technical Features

High-Level Analog Input & HART Integration

• Supports 4-20 mA or 1-5 VDC inputs with digital HART communication.

• Enables remote configuration, diagnostics, and monitoring of HART-enabled devices.

Channel Density & Performance

• 16 independent input channels per module.

• High-resolution 16-bit ADC ensures precise signal capture.

• Fast scanning rate: approximately 1 second per channel.

• Bandwidth: 0–4.7 Hz.

Temperature Measurement & Protection

• Compatible with thermocouples and RTDs.

• Cold junction compensation ensures accurate temperature readings in fluctuating ambient conditions.

• Configurable open-sensor detection and overload protection.

Robust Design

• Conformal coating for Class G3 harsh environments.

• Hot-swappable, supporting maintenance without process disruption (requires redundancy for bumpless transfer).

• Operating temperature range: -40°C to 70°C, Storage: -40°C to 85°C.

Functional Advantages

• Self-diagnostics with immediate fault reporting to the Experion controller.

• Flexible configuration for both redundant and non-redundant systems.

• Seamless integration with Series C I/O form factor, featuring slanted headers for efficient wiring and thermal management.

Technical Specifications

Applications

• Process control temperature monitoring for oil & gas, chemical, and power plants.

• Integration with Experion Series C for advanced HART-enabled instrumentation.

• High-density I/O scenarios where space and precision are critical.

FAQ

Q: Can the CC-PAIL51 measure both thermocouples and RTDs simultaneously?
A: Each channel can be independently configured for either sensor type, but simultaneous measurement on the same channel is not supported.

Q: Is redundancy required for hot-swapping?
A: Yes, redundancy is recommended for bumpless replacement without disrupting the process.

Q: Does this module support harsh environments?
A: Yes, the conformal coating and extended temperature range allow operation in Class G3 conditions.
