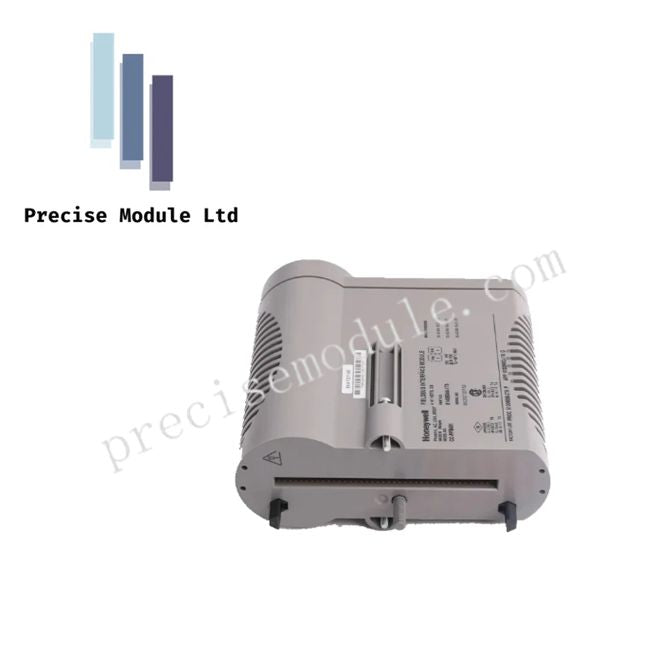

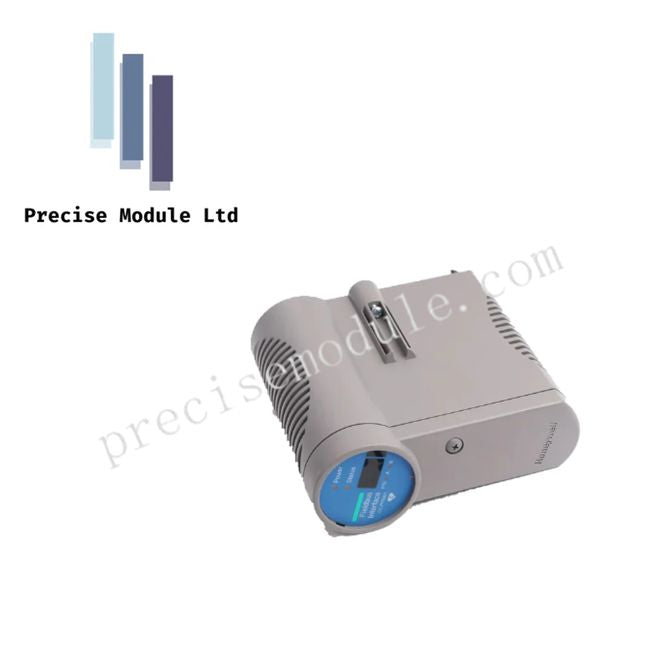

Honeywell CC-PDIL01 51405040-175 32-Channel Digital Input Module

Product Description

Overview

The Honeywell CC-PDIL01 (Part Number 51405040-175) is a high-density Digital Input Leaf (DIL) module for the Experion® PKS Series C platform. It provides reliable acquisition of discrete 24 Vdc signals from field devices such as switches, relays, and pushbuttons, integrating seamlessly with the C300 controller. With 32 input channels, the module is engineered for high channel density and industrial reliability in both continuous and batch process environments.

Key Features

High-Density Digital Acquisition

• 32 Discrete Inputs: Maximizes channel count in a single module to reduce IOTA space requirements.

• Wide Voltage Compatibility: Supports 18–30 Vdc input, ensuring compatibility with a range of field devices.

Real-Time Monitoring & Diagnostics

• LED Indicators: Each channel features a dedicated LED for immediate status verification.

• Self-Monitoring: Continuous health checks report module integrity and input state to the C300 controller.

Noise Immunity & Signal Integrity

• Robust Isolation: Provides galvanic separation between field circuitry and internal logic.

• High Noise Rejection: Maintains stable operation in electrically harsh industrial environments.

• Input Filtering: Configurable debounce and digital filtering prevent false triggers from mechanical vibration or contact bounce.

Industrial Reliability

• G3 Conformal Coating: Protects against moisture, dust, and corrosive gases.

• Hot-Swappable: Enables module replacement without shutting down the system, reducing downtime.

Technical Specifications

Typical Applications

• Field Device Monitoring: Captures the status of manual valves, pushbuttons, relays, and selector switches.

• Process Control Interfaces: Connects local discrete devices to the C300 controller for reliable on/off monitoring.

• Alarm and Event Triggering: Accepts signals from level, pressure, or flow switches for system alerts.

• Dense I/O Integration: Optimized for compact cabinets and high-density installation environments.

FAQ

Q: Can CC-PDIL01 be replaced without powering down the system?
A: Yes, it supports hot-swappable operation, especially in redundant setups.

Q: Is the module immune to electrical noise?
A: Yes, it features robust galvanic isolation and high noise rejection for stable operation in harsh environments.

Q: How does CC-PDIL01 differ from CC-PDIL11?
A: The CC-PDIL11 is designed for redundant configurations, providing seamless failover for critical applications, while CC-PDIL01 is non-redundant.
