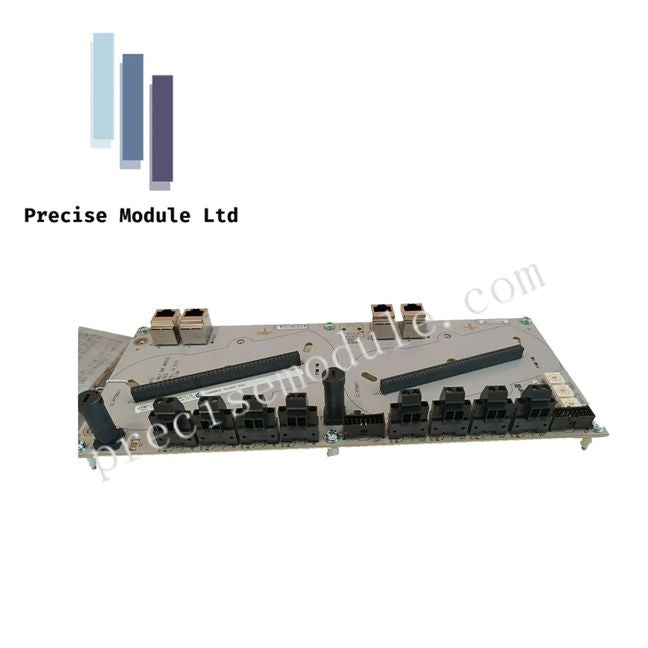

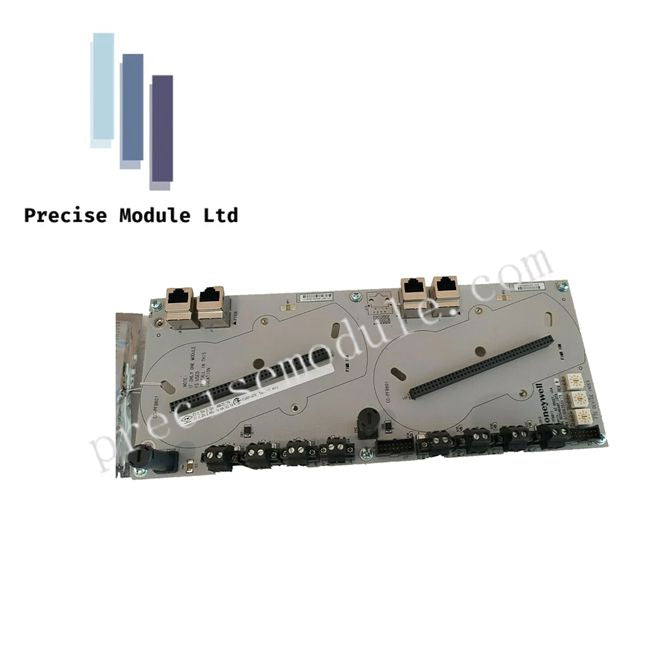

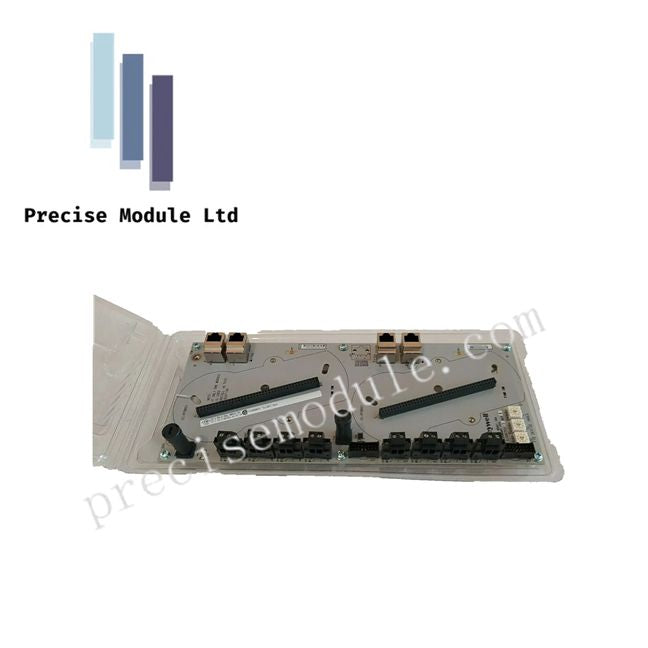

Honeywell CC-TPIX11 Pulse Input Module | Experion Series I/O

Product Description

The Honeywell CC-TPIX11 is a high-performance pulse input module for the Experion® PKS Series C I/O family. It provides precise counting and frequency measurement for industrial sensors such as flow meters, rotary encoders, and turbine generators. Designed for demanding process environments, the module supports redundant operation and ensures data integrity for critical applications like custody transfer, flow measurement, and speed monitoring.

Its compact, upright design mounts easily onto the I/O Termination Assembly (IOTA) and allows for plug-and-play installation, simplifying maintenance and reducing downtime.

Technical Specifications

System Compatibility

• Compatible with Experion Series C Distributed Control System

• Interfaces with C300 Controller for real-time process data

Input Characteristics

• Input Type: High-impedance, differential voltage, optically isolated (1000 VDC)

• Channels: 2 redundant channels supporting single or dual pulse inputs

• Frequency Range: 0–100 kHz (single channel), 0–10 kHz (dual channel)

• Accuracy: ±0.1% full scale (0.5 Hz–100 kHz)

• Resolution: 0.1 pulse

• Signal Support: Magnetic pickups, open collectors, logic-level pulses

Output Characteristics

• Type: Dry contact

• Voltage: 24 VDC

• Current: 0.1 A max

Power & Electrical

• Input Voltage: 24 VDC

• Maximum Current: 200 mA

• Power Consumption: Low power, optimized for Series C I/O

Environmental & Mechanical

• Operating Temperature: -40 to 70°C

• Storage Temperature: -40 to 85°C

• Humidity: 0–95% non-condensing

• Vibration: 0.05 g RMS, 10–500 Hz

• Shock: 5 g, 20 ms half-sine

• EMC Compliance: EN 61000-6-2, EN 61000-6-3

• Mounting: DIN rail mountable

Redundancy & Diagnostics

• 1:1 Redundancy with compatible IOTA

• Hot-swappable module for minimal system downtime

• Advanced diagnostics including open-circuit detection and internal health monitoring

Functional Highlights

• Converts pulse signals from field sensors into high-resolution digital data

• Supports totalization for flow measurement and custody transfer

• Monitors turbine or motor speed via frequency analysis

• Plug-and-play Series C design for easy installation and heat dissipation

• Provides channel-to-channel and channel-to-system galvanic isolation

Typical Applications

• Turbine and flow metering for liquids and gases

• Rotary encoders and speed monitoring of rotating machinery

• High-integrity custody transfer applications

• Industrial monitoring requiring SIL-compliant, accurate pulse counting

Configuration Tip

For optimal operation, pair the CC-TPIX11 with a compatible IOTA, such as CC-TRIX01, to ensure signal integrity and proper redundancy. Verify terminal block compatibility before installation.

FAQ

Q: Can the CC-TPIX11 operate in extreme temperatures?
A: Yes, the module supports -40°C to 70°C operating temperatures, with storage up to 85°C.

Q: How many channels does the module support?
A: It features 2 redundant channels capable of single or dual pulse input.

Q: Is the module hot-swappable?
A: Yes, under proper safety protocols, it can be replaced without shutting down the system.

Q: What pulse types are supported?
A: Magnetic pickups, open collectors, and standard logic-level signals.
