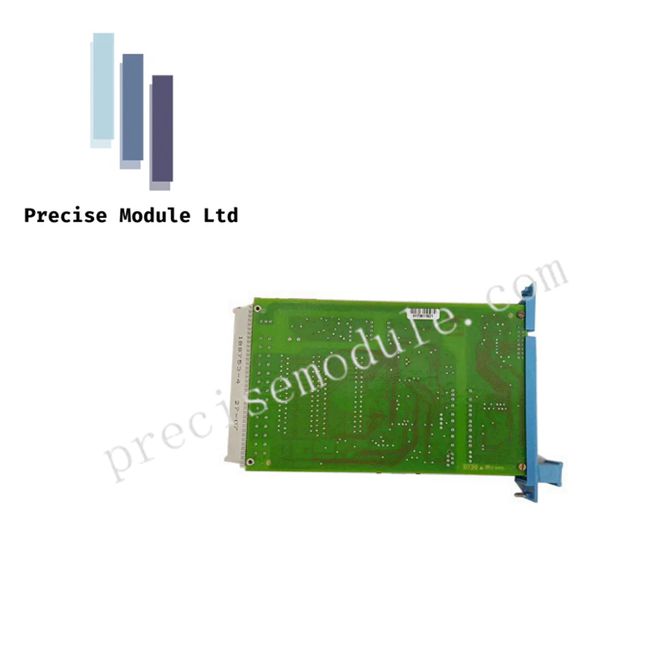

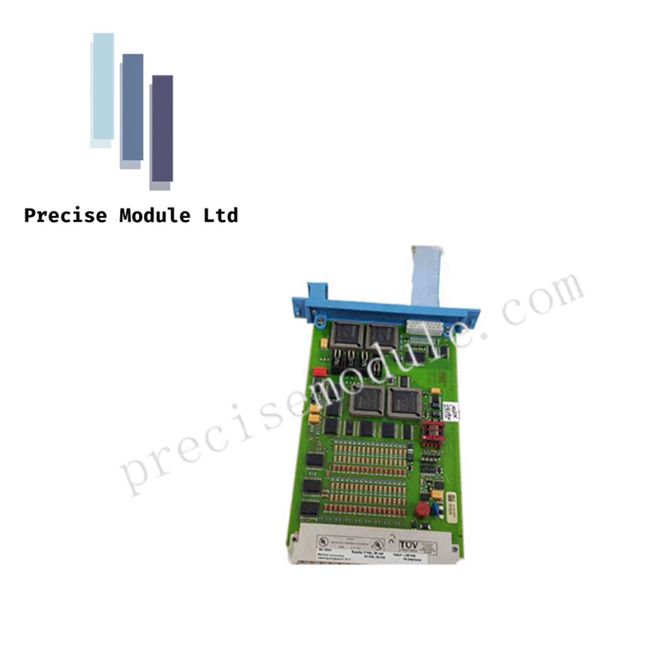

Honeywell FC-SAI-1620m SIL 3 Safe Analog Input Module

Product Description

Overview

The Honeywell FC-SAI-1620m is a compact, high-density Safe Analog Input Module designed for the Honeywell Safety Manager platform. This module supports 16 analog channels, providing precise acquisition of process signals for safety-critical applications. The “m” designation indicates monitored operation, offering enhanced diagnostics and continuous verification of field sensor integrity.

Key Features

High Precision and Safety

• SIL 3 Certified: Suitable for Safety Integrity Level 3 analog loops, ensuring maximum reliability for emergency shutdown and critical interlocks.

• 12-Bit Resolution: Accurate Analog-to-Digital conversion for 4–20 mA transmitters, supporting pressure, temperature, and flow measurement.

• Redundant Operation: Can be paired for high-availability configurations, maintaining operation if one module fails.

Advanced Monitoring Capabilities

• Monitored Channels: Continuously checks 4–20 mA loop integrity for open circuits, short circuits, or over-range/under-range conditions.

• HART Pass-Through: Compatible with HART-enabled devices, enabling remote diagnostics and calibration without interrupting the process.

Robust Electrical Design

• Galvanic Isolation: Protects the Safety Manager bus from field-side electrical interference and ground loops.

• Low Thermal Output: Efficient design reduces heat in dense control cabinets, extending module lifespan.

• Internal Self-Tests: Periodically verifies A/D conversion and reference voltages to maintain measurement accuracy within safety limits.

Maintenance-Friendly Design

• Hot-Swappable: Can be replaced online in redundant configurations, avoiding downtime.

• LED Diagnostics: Front-panel LEDs display module health and channel status for quick troubleshooting.

Technical Specifications

Primary Applications

• Emergency Shutdown (ESD): Monitoring critical pressure, temperature, or flow trip signals.

• Fire & Gas Systems (F&G): Analog gas detection and flame monitoring for hazardous areas.

• Critical Process Interlocks: Ensures analog values remain within safe limits before allowing process continuation.

FAQ

Q: Can the FC-SAI-1620m support HART-enabled devices?
A: Yes, it provides pass-through HART communication for calibration and diagnostics.

Q: Is hot-swapping supported?
A: Yes, in redundant systems the module can be replaced online without process disruption.

Q: What is the maximum number of channels per module?
A: The module supports 16 analog channels, each monitored for integrity.

Comparison with Similar Models

• FC-SAI-1616: Basic analog input module without monitored features.

• FC-SAI-1620: Standard 16-channel analog input, “non-monitored” version for less critical loops.
