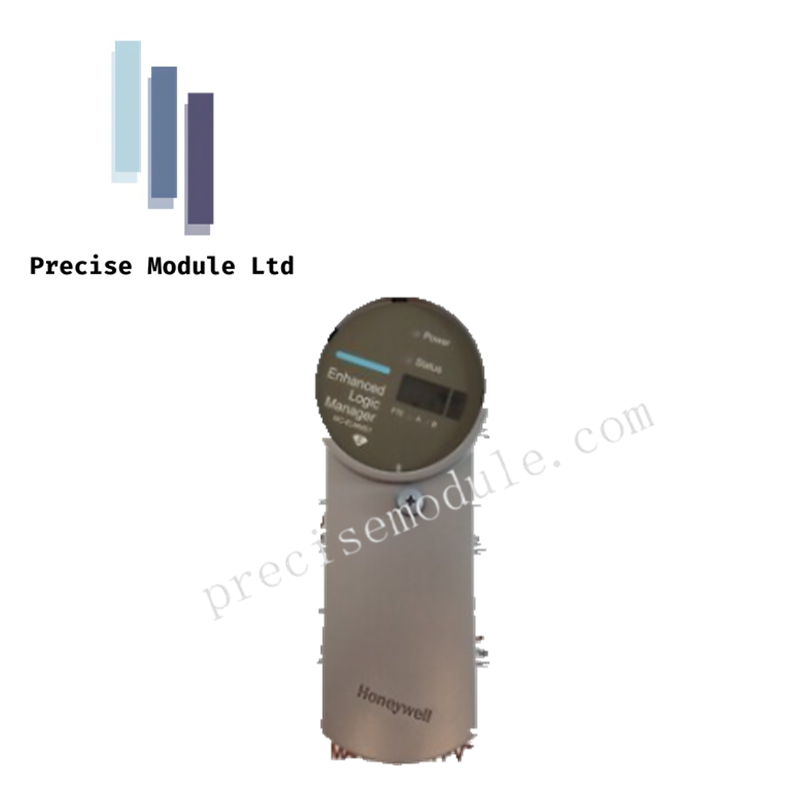

Honeywell MC-ELMMS1 51454552-175 Enhanced Logic Manager Module

Product Overview

The MC-ELMMS1 (51454552-175) is a high-performance Enhanced Logic Manager Module engineered for the Honeywell Experion Process Knowledge System (PKS) and ControlEdge PLC environments. This module acts as a dedicated processing engine for complex automation logic, high-speed sequence control, and advanced fault management routines. By offloading logic execution from the primary controller, the MC-ELMMS1 ensures deterministic performance and rapid response times for mission-critical industrial applications. Its compact design and low power profile make it an essential component for modernizing distributed control system (DCS) capabilities.

Technical Specifications

• Module Identifier MC-ELMMS1 (51454552-175)

• Component Type Enhanced Logic Manager (ELM)

• Primary Application Logic processing and sequence execution for Experion PKS/ControlEdge

• Nominal Input Voltage 24 VDC (Industrial Standard)

• Power Draw Approximately 25 W (Load-dependent)

• Signal Output Program-driven digital control signals

• Logic Execution High-speed processing of user-defined automation programs

• Physical Depth 12.7 cm

• Physical Height 12.7 cm

• Physical Width 3.2 cm

• Net Weight 0.2 kg (Approx. 0.44 lbs)

Operational Capabilities

The MC-ELMMS1 (51454552-175) is designed to enhance system reliability through specialized processing:

• Sequence Management Efficiently handles complex start-up, shut-down, and batching sequences.

• Fault Mitigation Rapidly executes safety interlocks and fault recovery logic to protect field assets.

• System Integration Fully compatible with Honeywell's Series C and Series 8 hardware footprints.

• Deterministic Timing Provides consistent scan rates for logic-intensive tasks that require precise synchronization.
