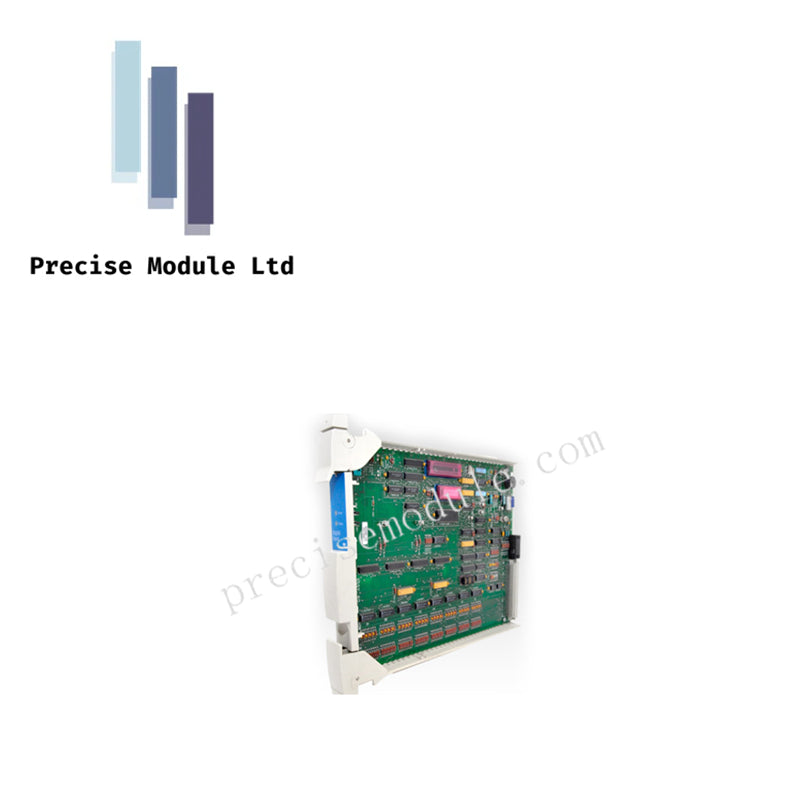

Honeywell MC-PSIM11 51304362-350 Serial Interface I/O Processor

Honeywell MC-PSIM11 51304362-350 Serial Interface I/O Processor

The Honeywell MC-PSIM11 51304362-350, also cataloged as the MC-PSIM11 Serial Interface I/O Processor, operates as a dedicated hardware component for Modbus-based asynchronous serial communication within the Honeywell rack system.

Hardware Specifications

Channel-to-Channel Isolation and Protocol Connectivity

The MC-PSIM11 provides two independent serial channels with galvanic isolation to prevent cross-channel interference. Supported interfaces include RS-232, RS-422, and RS-485, enabling connectivity to single or multi-drop Modbus RTU devices. Channel isolation ensures deterministic communication even under high-noise industrial environments. Cold junction compensation (CJC) is not applicable, but hardware flow control and parity options provide flexible protocol compliance.

Frequently Asked Questions

Q: How many Modbus devices can be connected in RS-485 mode? A: Up to 15 Modbus RTU-compatible devices can be connected in multi-drop configuration.

Q: What baud rates are supported? A: Configurable baud rates up to 115,200 bps are supported across both channels.

Q: Does the module include internal safety barriers? A: No, this configuration does not include internal barriers; external protection must be applied if required.

Field Installation Guidelines

• Mount the module securely into the designated rack slot with full connector engagement.
• Use shielded twisted-pair cabling for RS-422/485 connections, grounding the shield at one end only.
• Maintain separation between serial cabling and high-voltage conductors to reduce induced noise.
• Configure parity, stop bits, and baud rate via system software before commissioning.
• Pair with MC-TSIA12 terminal assembly and MC-TLPA02 power adapter for proper field wiring integration.
