Honeywell SPS5710 51199929-100 Power Supply Module | TDI

Product Description

Overview

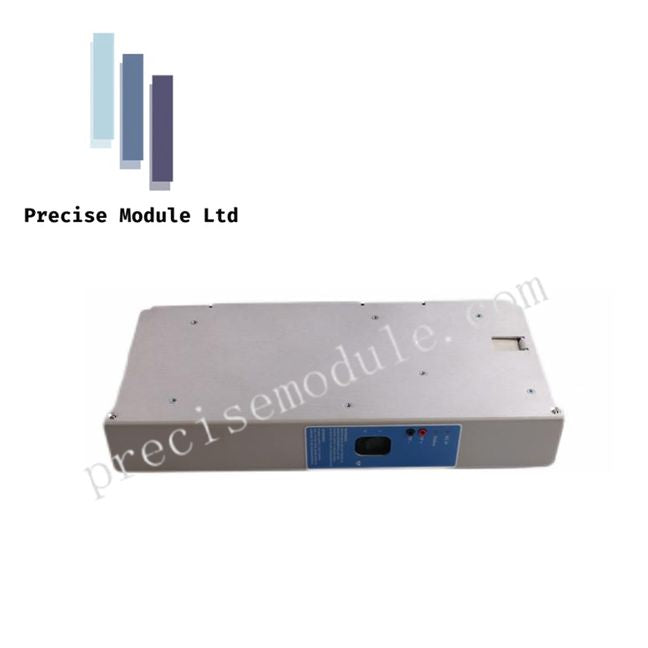

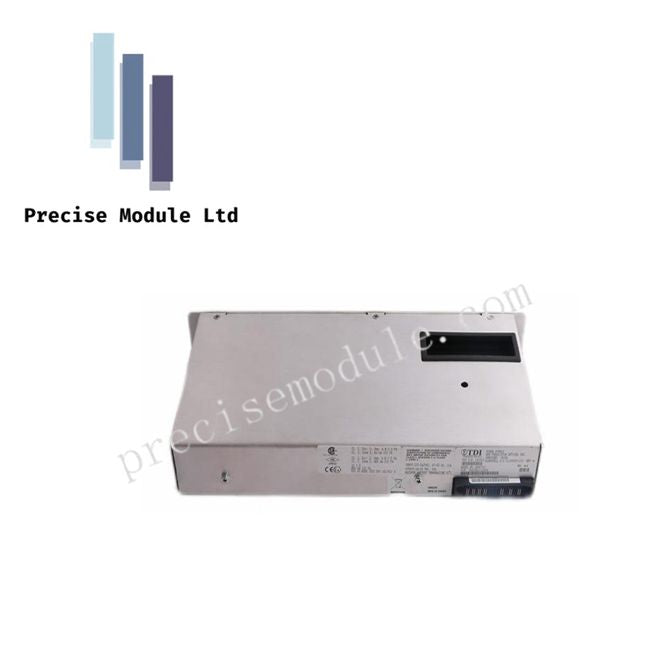

The Honeywell 51199929-100 (SPS5710) is a high-performance Power Supply Module designed for use in Honeywell Experion PKS and TDC 3000 control systems. Engineered for industrial reliability, the SPS5710 delivers regulated DC power to controller racks, I/O modules, and field devices. Its modular design supports compact installations while enabling redundant configurations to maximize uptime in critical processes.

This unit converts AC or DC inputs into stable 24V DC outputs and incorporates multiple safety and protection features to ensure dependable operation in harsh environments.

Key Features

• Redundant Power Capability: Supports parallel “1+1” configurations to maintain continuous operation in the event of a module failure.

• Wide Input Voltage: Operates with 100–240 VAC at 47–63 Hz, compatible with global electrical standards.

• High Current Output: Delivers up to 20A DC to power multiple devices simultaneously.

• Safety Certification: Approved for Class I, Division 2, Zone 2 hazardous locations.

• Compact, Modular Form Factor: Facilitates seamless integration into standard Honeywell power supply assemblies.

• Advanced Protection: Built-in overcurrent, overvoltage, short-circuit, and thermal protection.

• Hot-Swappable Support: Can be replaced without shutting down the system when used in redundant setups.

Technical Specifications

Applications

• Powering Honeywell Experion PKS and TDC 3000 controller racks and I/O modules.

• Critical industrial processes requiring continuous power supply with redundancy.

• Control panels in hazardous locations requiring Class I, Division 2 compliance.

• Systems demanding compact, modular, and easily maintainable power solutions.

FAQ

Q: What is the maximum output current of the SPS5710?
A: It provides up to 20A of DC current.

Q: Can this module be used in hazardous areas?
A: Yes, it is certified for Class I, Division 2, Zone 2 environments.

Q: Does it support redundant operation?
A: Yes, it supports “1+1” redundant configurations for continuous power.

Q: Is the module hot-swappable?
A: Yes, in a redundant setup, the module can be replaced without system downtime.

Q: What input voltages are supported?Honeywell
A: It operates from 100 to 240 VAC at 47–63 Hz.
