Product Description

Overview

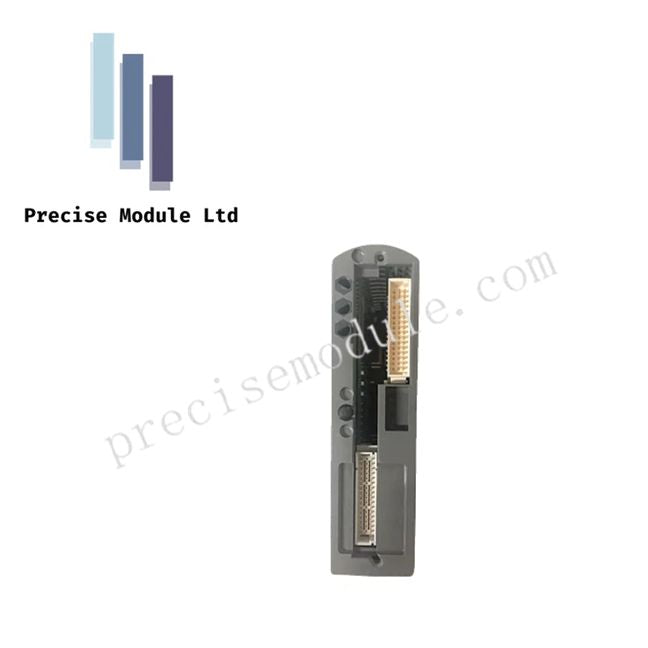

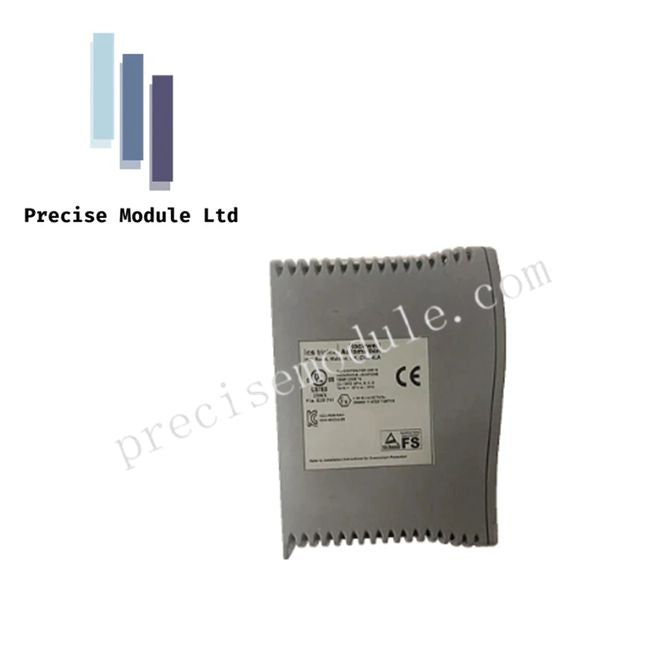

The ICS Triplex T9451 is a high-performance Digital Output (DO) module developed for the Trusted™ safety system. Designed for critical control and Safety Instrumented Systems (SIS), this module converts digital control signals into reliable field-level electrical outputs with maximum fault tolerance. Its Triple Modular Redundant (TMR) architecture ensures continued operation under component failures, making it ideal for high-availability industrial applications.

Design and Architecture

T9451 employs TMR design principles with triplicated output circuits and hardware voting at the final stage. This ensures fail-safe operation and uninterrupted signal delivery to actuators such as solenoids, relays, and indicator devices. The module features continuous self-diagnostics to detect stuck-on, stuck-off, or open-circuit conditions per channel. Hot-swappable design enables module replacement without process interruption, supporting redundant chassis configurations.

Performance Features

Output Specifications

• Channel Count: 8 per module (8 fully isolated outputs)

• Nominal Voltage: 24/48 V DC

• Maximum Output Current: 2A per channel

• Output Type: High-side sourcing, supports pulse, PWM, or fixed potential modes

• Load Monitoring: Detects open circuits and loss-of-load conditions

Safety and Reliability

• Certified for SIL 3 safety applications under IEC 61508

• TMR architecture allows detection and isolation of single-component failures

• Supports redundant system configurations for active/standby operation

Diagnostics and Monitoring

• Continuous output verification with micro-duration pulses to test switching devices

• Real-time voltage and current feedback of field-side outputs

• Front-panel LEDs indicate module health, channel status, and detected faults

Environmental & Physical

• Operating Temperature: -40°C to 85°C

• Mounting: DIN rail

• Protection Rating: IP67 for resistance against dust and water ingress

• Dimensions: 134 mm x 85 mm x 35 mm

• Weight: 0.5 kg

Technical Specifications

Applications

The T9451 module is deployed in applications requiring high availability and safety integrity:

• Emergency shutdown (ESD) and safety interlocks

• Control of solenoids, relays, indicator lights, and valves

• Industrial process automation in chemical, petroleum, power generation, and water treatment plants

• Automotive, food & beverage, and pharmaceutical production lines

FAQ

Q1: How many output channels are available on the T9451?
A: 8 fully isolated channels, each capable of 2A output.

Q2: What output types does it support?
A: High-side sourcing, pulse output, PWM, and fixed voltage modes.

Q3: Can the module be replaced while the system is running?
A: Yes, the T9451 is hot-swappable for uninterrupted operation.

Q4: What is the maximum ambient temperature for operation?
A: -40°C to 85°C.
