ICS Triplex T9451 T9432 Digital Output Module Trusted™ System

Product Description

Module Overview

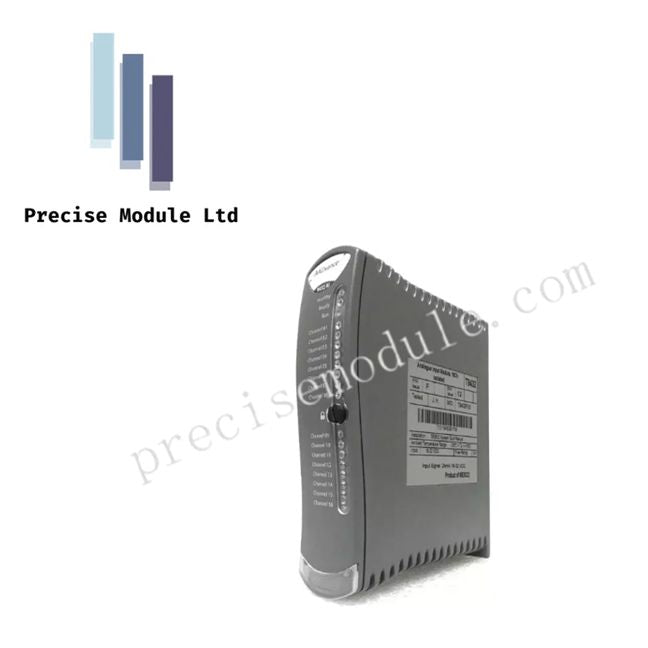

The ICS Triplex T9451 is a high-reliability Digital Output Module engineered for the Trusted™ Safety Instrumented System (SIS). Designed for applications requiring maximum uptime and fault tolerance, this module supports mission-critical control with triple redundancy and advanced diagnostic monitoring.

Technical Specifications

Electrical Characteristics

• Input Voltage: 24 VDC nominal

• Output Channels: 32 independent channels

• Output Type: Sourcing (High Side)

• Max Current per Channel: 0.5 A (dependent on load)

• Total Module Current: Limited by backplane and heat dissipation

• Voltage Isolation: 50V continuous (Field-to-Logic)

Safety and Redundancy

• Architecture: Triple Modular Redundant (TMR)

• Safety Integrity Level (SIL): SIL 3 (IEC 61508 certified)

• Fault Detection: Automatic identification and isolation of single component failures

• No-Load Monitoring: Detects open circuits per channel

Diagnostic and Monitoring Features

• Pulse Testing: Micro-duration output verification to confirm switching functionality without impacting field devices

• Voltage & Current Feedback: Real-time monitoring of output parameters

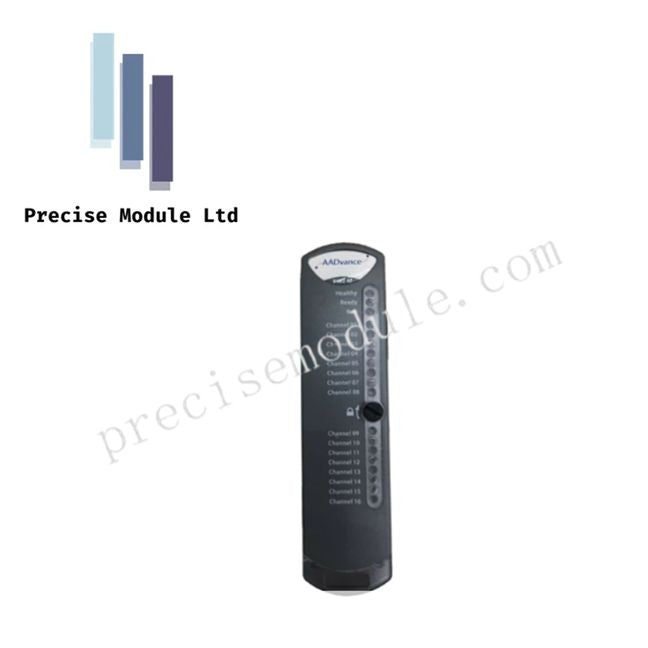

• LED Indicators: Module health, channel status, field fault alerts

Mechanical & Environmental

• Operating Temperature: 0°C to 60°C

• Weight: Approximately 340 g (12 oz)

• Power Consumption: 4.0 W, Heat Dissipation: 4.0 W (13.6 BTU/hr)

• Hot-Swappable: Supports seamless replacement and automatic configuration download

Performance Summary

Applications

Suitable for high-availability control systems including chemical plants, power generation, and safety-critical industrial processes where uninterrupted digital output reliability is required.

FAQ

Q: Can the T9451 be replaced without shutting down the system?
A: Yes, it supports hot-swapping and automatic configuration download from the controller.

Q: Which processor is recommended with this module?
A: The T9110 processor is the most commonly paired unit for optimal TMR operation.

Q: How do I ensure safe operation with high current loads?
A: Use a compatible Termination Assembly (TA) to prevent over-temperature conditions.
