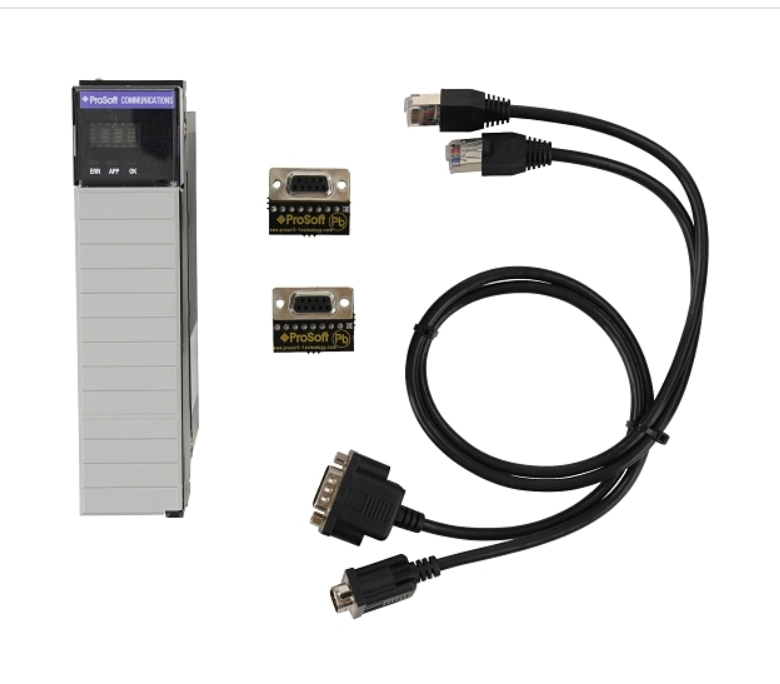

MVI56E-MCM | ProSoft | Modbus Communication Module

Manufacturer: Allen-Bradley
Product No.: MVI56E-MCMXT的光盘+线
Condition：in Stock
Product Type: Modbus Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Overview

The MVI56E-MCM Modbus Communication Module is designed for 1756 ControlLogix® backplanes and supports backward compatibility with the previous MVI56-MCM version. It integrates seamlessly with industrial automation systems while providing flexible network diagnostics and user-friendly configuration.

Key Features

Backward-compatible with legacy MVI56-MCM modules.
Single-slot design for 1756 ControlLogix® backplanes.
10/100 MB Ethernet port with Auto Cable Crossover Detection.
Supports RIUP (Remove and Insert Under Power) for uninterrupted operation.
User-definable data memory mapping with up to 10,000 16-bit registers.

Technical Specifications

Attribute	Details
Part Number	MVI56E-MCM
Manufacturer	ProSoft
Product Type	Modbus Communication Module
Backplane Current Load	800 mA @ 5 Vdc, 3 mA @ 24 Vdc
Operating Temperature	0°C to 60°C (MVI56E-MCM), -25°C to 70°C (MVI56E-MCMXT)
Storage Temperature	-40°C to 85°C
Shock Resistance	30g operational, 50g non-operational
Vibration	5 g from 10 to 150 Hz
Relative Humidity	5% to 95% non-condensing
LED Indicators	ERR, APP, OK, scrolling alphanumeric display
Weight	2 Kg

Applications

The MVI56E-MCM is widely used in process automation, SCADA systems, and industrial networking. It ensures reliable Modbus communication, provides real-time diagnostics, and simplifies integration in harsh environments.
