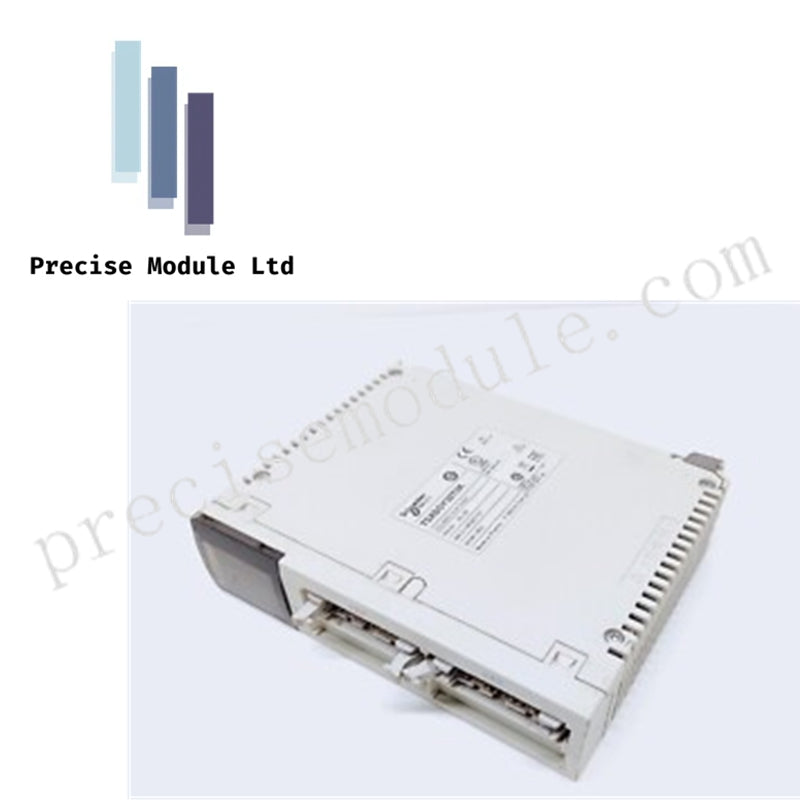

Schneider Electric Modicon TSXDSY32T2K | Discrete Output Module | 32 Channels | 24V DC | HE10 Connectors | Modicon Premium

Overview

The Schneider Electric Modicon TSXDSY32T2K is a high-density Discrete Output Module designed for the Modicon Premium PLC platform. This module provides 32 solid-state transistor outputs intended for driving 24V DC loads such as solenoids, contactors, and indicator lights. The "K" suffix in the model indicates the use of HE10 connectors, making it ideal for rapid wiring solutions with Telefast pre-wired cabling systems, reducing installation time in high-density panel environments.

The TSXDSY32T2K module is a "Current Sourcing" (Source) type, providing a positive 24V DC signal to external loads. Its high output density in a single-slot configuration and built-in protection features make it a reliable solution for controlling high-power industrial devices.

Key Features

• Model: Schneider Electric Modicon TSXDSY32T2K

• Output Type: Current Sourcing (Positive logic)

• Channels: 32 solid-state transistor outputs

• Nominal Output Voltage: 24V DC

• Connector Type: HE10 (20-way) connectors for seamless integration with Telefast cabling systems

• Load Compatibility: Suitable for driving 24V DC solenoids, contactor coils, and indicator lamps

Technical Specifications

Protection Features

The TSXDSY32T2K offers several built-in safety features to ensure reliable operation and protect the system:

• Short-Circuit Protection: Electronic protection on each output, automatically limiting current during a short circuit event

• Overload Protection: Thermal protection to prevent damage from excessive current

• Reverse Polarity Protection: Safeguards against accidental reverse wiring of the external power supply

• Voltage Surge Protection: Zener diodes protect against inductive kickback from solenoids and other inductive loads

Connectivity & Indicators

• Connector Type: Two HE10 (20-way) male connectors for secure and rapid wiring connections

• Cabling Compatibility: Works with TSX CDP ribbon cables or multi-core cables, compatible with Telefast 2 (ABE7) sub-bases

• Front Panel LEDs:

• RUN: Green LED (indicates module operation)

• ERR: Red LED (signals internal fault or configuration error)

• I/O: Red LED (indicates external fault, such as a short circuit or missing 24V DC supply)

• 0–31: Green LEDs (display the status of each output point)

Physical & Environmental

Applications

The Schneider Electric Modicon TSXDSY32T2K is ideal for industrial control systems where high-density digital outputs are required for controlling 24V DC loads. It is commonly used in applications such as:

• Controlling solenoids, relays, and contactors in automated systems

• Driving indicator lamps in industrial automation environments

• Power distribution systems requiring efficient output management

The use of HE10 connectors and compatibility with Telefast pre-wired cabling systems makes installation quick and efficient, even in complex, high-density environments.

Frequently Asked Questions (FAQ)

Q1: What types of loads can the TSXDSY32T2K module control?

• The TSXDSY32T2K is designed to control 24V DC loads, such as solenoids, contactors, and indicator lamps. It supports both resistive and inductive loads, with protection features for inductive kickback.

Q2: How does the short-circuit protection work in this module?

• Each output channel on the TSXDSY32T2K features electronic short-circuit protection. If a short circuit occurs, the module automatically limits the current to prevent damage to the system, ensuring reliability and operational safety.

Q3: Can the TSXDSY32T2K be used for high-frequency switching?

• Yes, the TSXDSY32T2K is capable of rapid cycling, and its response time of ≤ 1.2 ms ensures it can handle high-frequency switching, especially in applications like solenoid control.

Q4: What is the maximum current the TSXDSY32T2K module can handle?

• The module can supply 0.1 A per channel, with a maximum total current of 3.2 A per module, making it suitable for controlling multiple outputs simultaneously.
