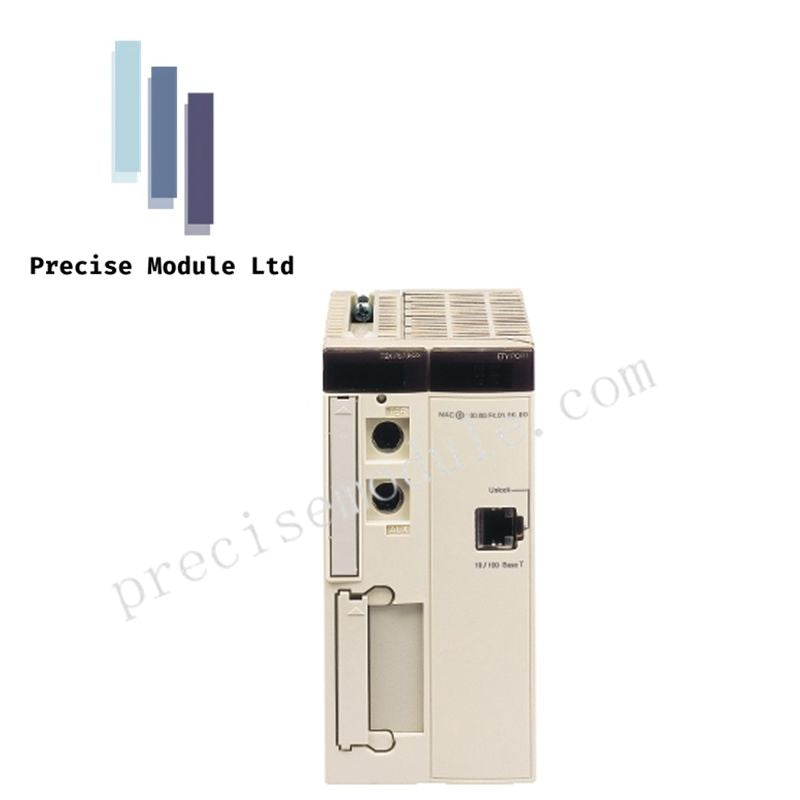

Schneider TSXP572634M Unity Processor

Manufacturer: Schneider Electric
Product No.: TSXP572634M
Condition：in Stock
Product Type: Unity Processor
Product Origin: France
Payment:T/T, Western Union
Weight: 734g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Schneider Electric Modicon Premium TSXP572634M Unity Processor

The Schneider Electric Modicon Premium TSXP572634M Unity Processor is designed for the Modicon Premium automation platform. It integrates seamlessly with Unity Pro software and provides robust performance for complex industrial control systems. This processor supports a wide range of applications and is capable of handling significant amounts of I/O with high-speed processing and advanced communication features.

Key Features and Technical Specifications

Category	Specification
Model	TSXP572634M
Product Type	Unity Processor
Software Compatibility	Unity Pro, Concept
Number of Racks Supported	16 racks with 4/6/8 slots, 8 racks with 12 slots
Number of Slots	128 total, with up to 96 or 64 slots depending on configuration
Discrete I/O Processor Capacity	1024 I/O
Analogue I/O Processor Capacity	80 I/O
Application-Specific Channels	24 channels
Process Control Channels	10 to 30 simple loops
Integrated Connections	Non-isolated serial link (RS485) 19.2 kbit/s, Ethernet TCP/IP (RJ45)
Ethernet Port	10BASE-T/100BASE-TX Ethernet
Memory	160 kB data and 768 kB program (with PCMCIA card)
	160 kB program and data (without PCMCIA card)
PCMCIA Card	16,384 kB additional data storage
Execution Time Per Instruction	0.19 µs for Boolean operations (without PCMCIA)
	0.25 µs for word/fixed-point operations (without PCMCIA)
	1.75...2.6 µs for floating-point operations (with/without PCMCIA)
System Overhead	0.3 ms for fast tasks, 1 ms for master tasks
Instructions Per Millisecond	2.53 Kinst/ms (65% Boolean + 35% fixed arithmetic, with PCMCIA)
	3.7 Kinst/ms (100% Boolean with PCMCIA)
Marking	CE
Local Signalling	Multiple LEDs for communication, processor status, and fault detection
Current Consumption	1650 mA at 5 V DC
Module Format	Double
Net Weight	0.042 kg

Environmental and Packaging Information

Category	Specification
Certifications	UL, CSA, DNV, LR, BV, RMRS, GL, RINA, ABS
Standards	IEC 61131-2, UL 508, CSA C22.2 No 213, IEC 93/68/EEC
Ambient Temperature	0 to 60°C for operation, -25 to 70°C for storage
Humidity	10 to 95% for operation, 5 to 95% for storage (non-condensing)
Operating Altitude	0 to 2000 meters
IP Protection	IP20
Pollution Degree	2
Protective Treatment	TC (Temperature Control)
Package Type 1 (Single Unit)	PCE
Package 1 Dimensions	Height: 9.5 cm, Width: 18.0 cm, Length: 26.0 cm
Package 1 Weight	734.0 g
Package Type 2 (Multiple Units)	S04
Package 2 Dimensions	Height: 30.0 cm, Width: 40.0 cm, Length: 60.0 cm
Package 2 Weight	5.351 kg
