Product Overview

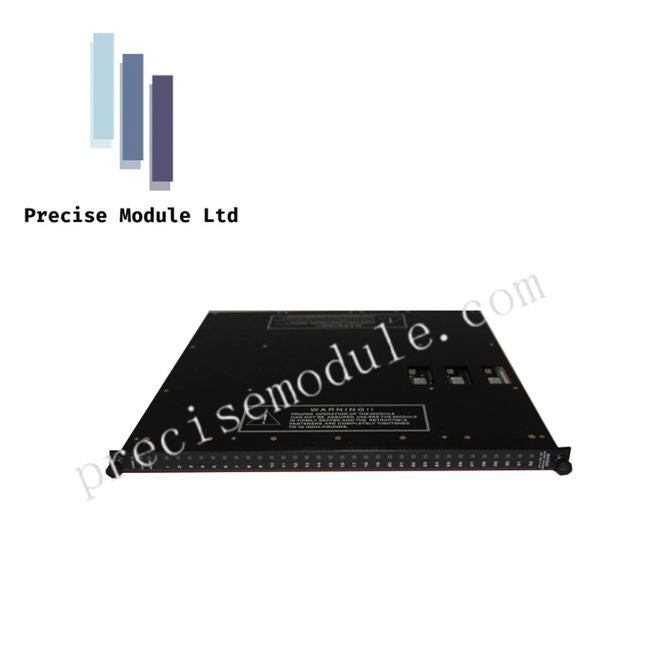

The Triconex 3503E (Part Number 3503E) is a high-density 24 VDC digital input module engineered for Tricon™ Triple Modular Redundancy (TMR) control systems. Designed for safety-critical applications, it monitors discrete field devices and dry contacts with unparalleled fault tolerance. The module integrates three independent input paths, ensuring reliable detection through 2-out-of-3 voting logic. Advanced diagnostics continuously test the circuitry for latent failures, maintaining high system availability and process integrity.

Key Features

Triple Modular Redundancy (TMR)

• Each input channel is divided into three independent legs (A, B, C), isolating hardware failures.

• The 2oo3 voting mechanism ensures accurate detection even if one leg fails.

Comprehensive Self-Diagnostics

• Automated forced-value testing identifies stuck-on or stuck-off conditions.

• Hardware and software input filters prevent signal noise and contact bounce from causing false trips.

High Availability and Maintainability

• Hot-swappable design allows module replacement without shutting down the process.

• Status LEDs provide real-time feedback: PASS, FAULT, ACTIVE, and per-point indicators.

Safety Compliance and Environmental Robustness

• SIL 3 certified under IEC 61508 standards.

• Galvanic isolation protects the logic bus from field wiring transients.

Technical Specifications

Applications

The 3503E is widely applied in safety-critical systems:

• Emergency Shutdown (ESD) for pushbuttons, level and pressure switches

• Fire and Gas (F&G) detection with smoke, flame, and heat sensors

• Burner Management Systems (BMS) monitoring valve and fan statuses

• Interlock systems ensuring safe operational sequences

FAQs

Q: Can the 3503E module be replaced without process downtime?
A: Yes, it is fully hot-swappable and will synchronize automatically with the active system.

Q: What diagnostic capabilities does the module offer?
A: It continuously tests inputs for stuck-on/stuck-off faults and filters signal noise for accurate readings.

Q: Is the module suitable for SIL 3 applications?
A: Yes, the 3503E meets IEC 61508 SIL 3 standards.

Q: Can it handle high-noise industrial environments?
A: Yes, with galvanic isolation and input filtering to suppress electrical noise.
