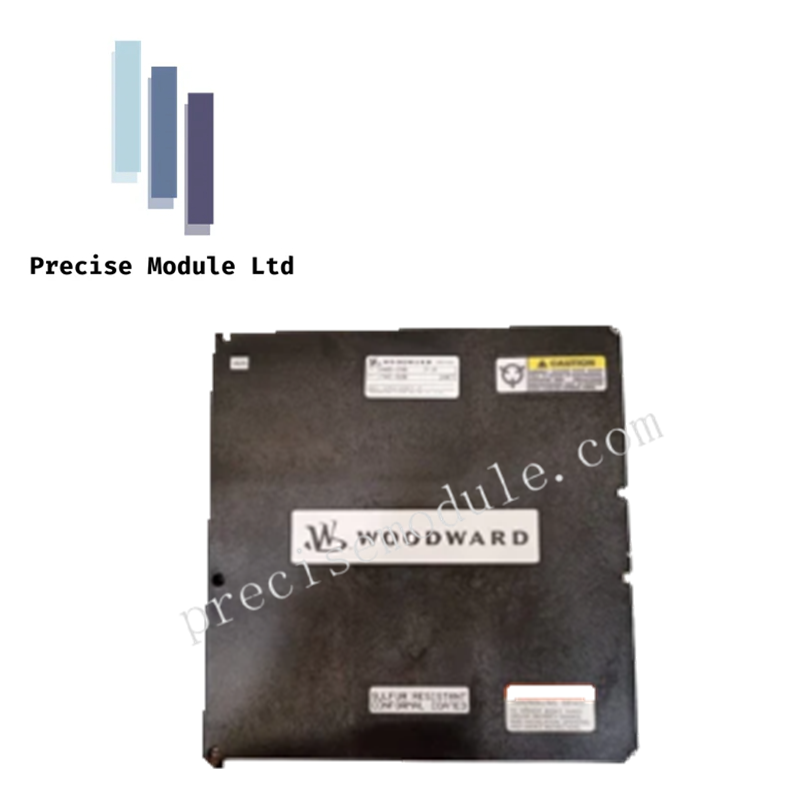

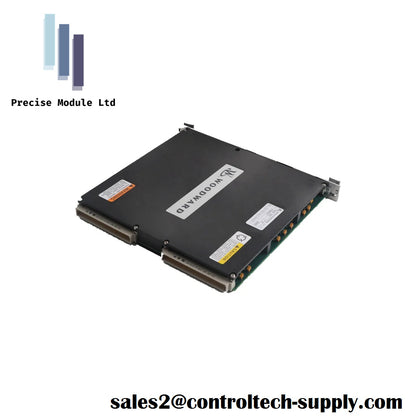

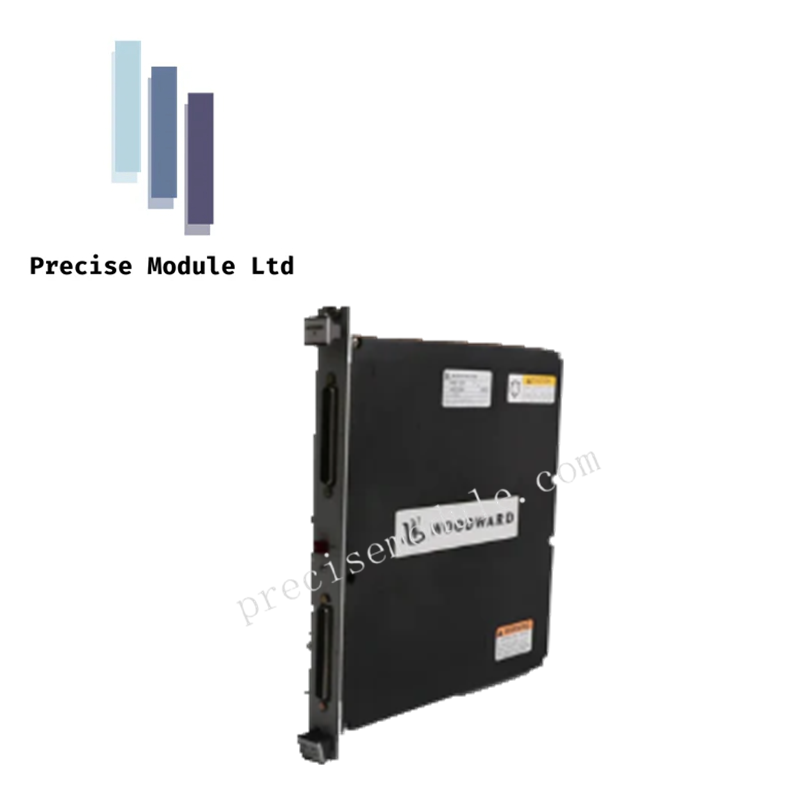

W00DWARD 5501-469 PLC CPU Module

Technical Overview

The 5501-469 is a high-performance Central Processing Unit (CPU) module from Woodward, engineered to serve as the primary computational engine for advanced industrial automation and control systems. Designed for mission-critical reliability, this module manages the execution of complex control algorithms, high-speed I/O processing, and multi-protocol communication. Its robust architecture is specifically tailored for demanding environments, such as power generation plants and engine control systems, where deterministic performance and long-term durability are essential.

Detailed Technical Specifications

The following parameters define the processing power and environmental resilience of the 5501-469:

• Manufacturer: Woodward

• Model Number: 5501-469

• Product Type: PLC CPU Module

• Core Function: High-speed logic processing and system coordination

• I/O Support:

• Broad compatibility with digital and analog I/O expansion modules

• Scalable configuration based on site-specific point counts

• Communication Stack:

• Network: Integrated Ethernet for SCADA and peer-to-peer messaging

• Serial: RS-232/485 for local device integration

• Fieldbus: Supports standard industrial fieldbus protocols for remote I/O

• Software & Programming:

• Supports multiple industry-standard programming languages (LD, ST, FBD)

• Fully compatible with Woodward’s proprietary development and diagnostic tools

• Electrical Requirements:

• Input Voltage: 24V DC (Standard industrial supply)

• Efficiency: Optimized power consumption for reduced thermal load

• Environmental Ratings:

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Humidity: Engineered for non-condensing high-humidity industrial zones

Control Logic and System Integration

The 5501-469 acts as the "brain" of the Woodward control assembly. It continuously scans input data from field sensors, executes the programmed user logic, and updates output modules to command actuators, valves, and motor starters. Its high-speed processing capabilities allow it to handle rapid transient events, such as load shedding or generator synchronization, with millisecond precision. Furthermore, the integrated Ethernet port enables seamless remote monitoring, allowing engineers to perform real-time diagnostics and firmware updates from a centralized control room.
