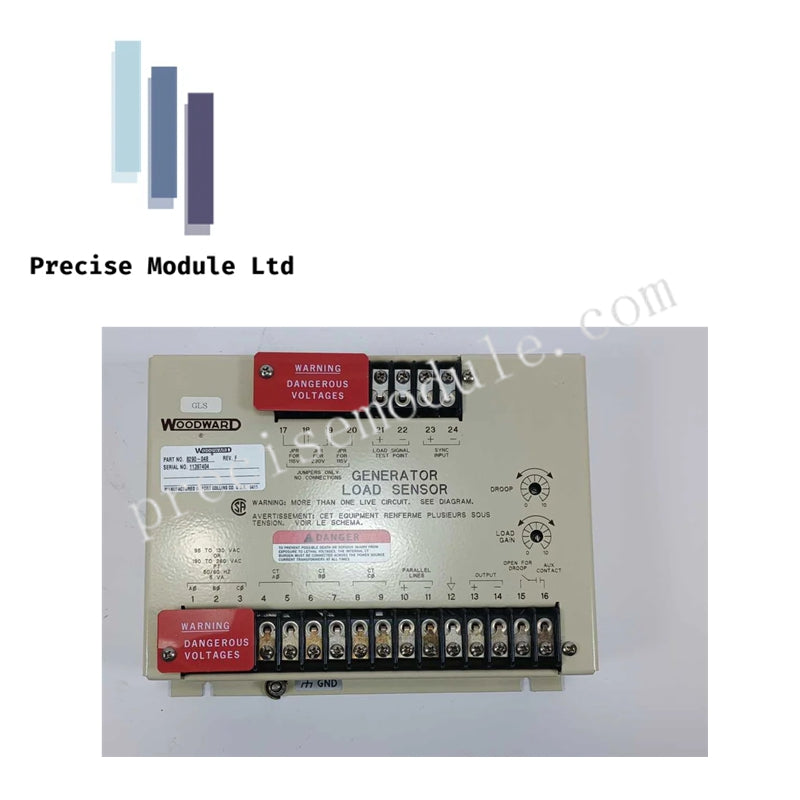

Woodward 8290-048 EPG 512/524 Engine Speed Controller

Overview

The 8290-048 is an electronic governing module from Woodward’s Electrically Powered Governor (EPG) 512/524 platform. The 8290-048 is engineered for low-speed engine applications and operates typically on 24 VDC systems.

This controller forms a compact governing solution when paired with a magnetic pickup and a compatible EPG actuator. It directly regulates fuel delivery based on real-time speed feedback, providing stable and responsive engine performance without requiring mechanical or hydraulic components.

Technical Specifications

Functional Description

The 8290-048 operates as a closed-loop electronic governor. It compares the incoming speed signal with a predefined setpoint and adjusts actuator output accordingly.

Designed for direct control of EPG actuators (such as models 512 and 524), the module provides precise fuel positioning, ensuring stable engine speed across varying load conditions.

Key Features

Simplified System Architecture

The controller is part of a minimal three-component setup consisting of the control unit, a magnetic pickup sensor, and an actuator. This reduces installation complexity and improves system reliability, especially in retrofit scenarios.

Isochronous Speed Regulation

Primarily designed for constant-speed operation, the unit maintains engine speed within tight tolerance regardless of load changes. External configuration can enable droop characteristics when required for parallel operation.

Adjustable Dynamic Response

Front-panel potentiometers allow engineers to fine-tune system behavior:

• Speed Setting: Defines the target operating speed

• Gain: Controls response sensitivity

• Stability: Minimizes oscillation and improves smoothness

Start Fuel Limiting Function

The controller includes a startup control feature that restricts fuel delivery during cranking. This reduces exhaust smoke and prevents overspeed during engine start-up phases.

Application Areas

The 8290-048 is commonly used in:

• Diesel engine generator sets

• Gas engine control systems

• Industrial pumps and compressors

• Retrofit replacements for mechanical governors

It is especially suitable for small to mid-sized engines requiring dependable electronic speed regulation.

Comparison with 2301A Controllers

The 8290-048 differs significantly from Woodward 2301A series controllers:

• 8290-048 (EPG): Standalone speed control designed for direct actuator operation

• 2301A Series: Advanced controllers with load-sharing capabilities for multi-generator systems

Selection depends on system complexity and whether load-sharing functionality is required.

FAQ

What actuator is compatible with this controller?

It is designed to operate with Woodward EPG actuators, particularly models 512 and 524.

Can this unit be used for generator paralleling?

It primarily supports isochronous control. Droop operation is possible but requires additional external configuration.

Is it suitable for retrofit projects?

Yes, its simple architecture makes it a common replacement for older mechanical governing systems.

What type of speed sensor is required?

A magnetic pickup sensor is required to provide frequency-based speed feedback.
