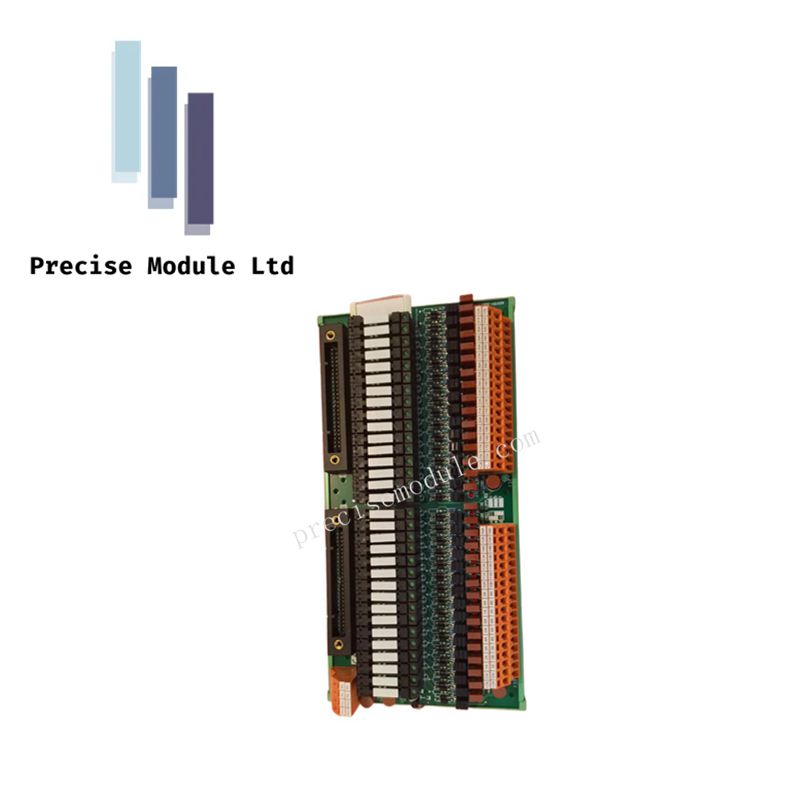

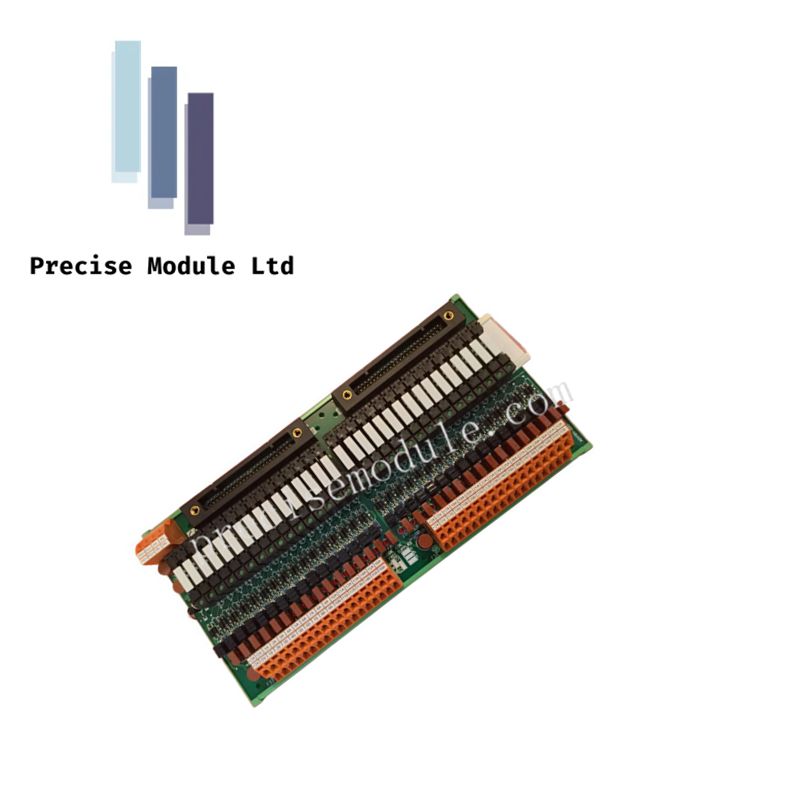

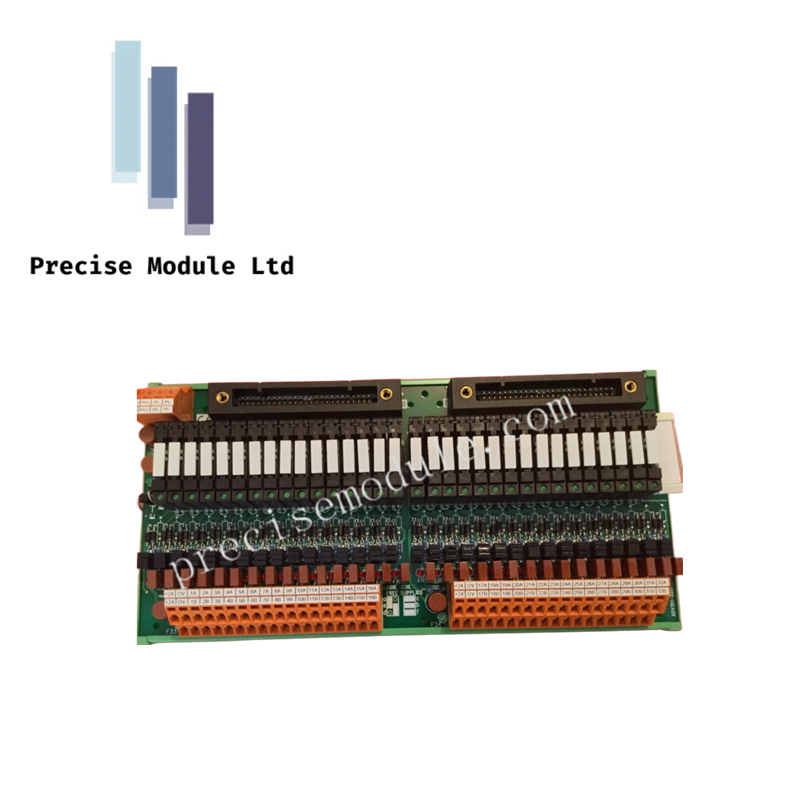

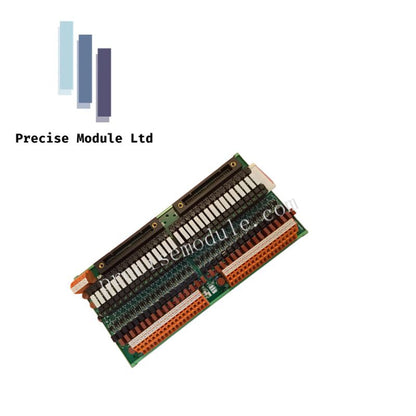

The ADV151-DI32 analog input module from Yokogawa is engineered for high-speed, high-resolution signal acquisition in industrial automation systems. It supports differential inputs and multiple voltage ranges for flexible deployment.
Specifications
Model: ADV151-DI32
Manufacturer: Yokogawa
Analog Input Channels: 32 differential inputs
Input Voltage Range: ±10 V, ±5 V, 0–10 V, 0–5 V
Input Resolution: 16-bit precision
Input Sampling Rate: Up to 100 kS/s per channel
Communication Interfaces: Ethernet and RS-485
Power Supply: 24 V DC (±10%)
Operating Temperature: -10°C to +60°C
Dimensions: 128 mm × 123 mm × 35 mm
Mounting Method: DIN rail installation
Features
High-Resolution Input: Captures analog signals with 16-bit accuracy for precise monitoring.
Flexible Voltage Support: Accepts multiple input ranges to suit diverse sensor types.
Fast Sampling Rate: Acquires data at up to 100 kS/s per channel for real-time analysis.
Dual Communication Ports: Offers Ethernet and RS-485 for versatile system integration.
Compact Form Factor: Slim design fits easily into control cabinets and tight spaces.
Stable Power Operation: Runs efficiently on 24 V DC with ±10% tolerance.
Wide Temperature Range: Operates reliably from -10°C to 60°C in industrial environments.
DIN Rail Mounting: Simplifies installation and maintenance in modular setups.
