Overview

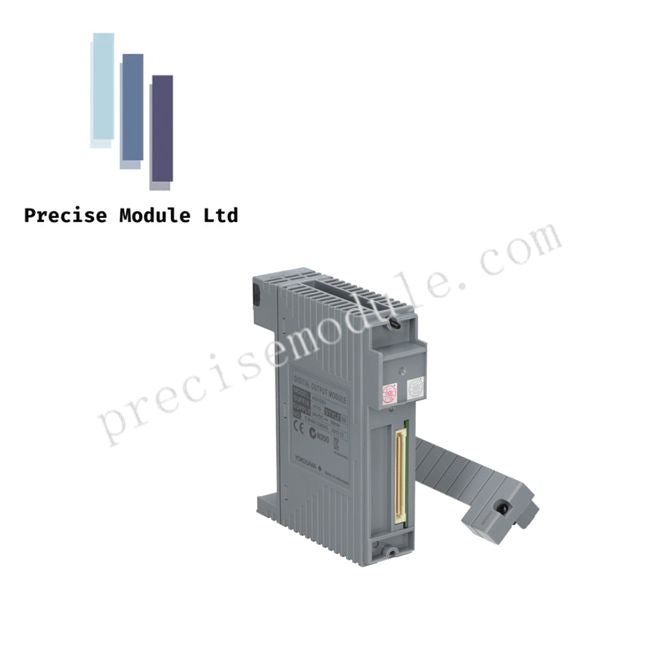

The Yokogawa ADV551-P10 is a high-density digital output module designed for CENTUM VP and CENTUM CS 3000 Integrated Production Control Systems. As part of the FIO (Field network I/O) family, this module enables precise signal transmission from the DCS to field devices, supporting multiple output modes and high-speed operation for demanding industrial environments.

Key Features

Flexible Output Modes
The module supports versatile control types:

• Status Output: ON/OFF switching for solenoids, motors, and valves

• Pulse Width Output: Adjustable single-shot pulses from 8 ms to 7,200 seconds for latching relays or electronic triggers

• Time-Proportional Output: Duty-cycle modulation for devices such as heaters

High-Speed Operation

• Status output response: ≤3 ms

• Pulse and proportional functions resolution: 8 ms

• Real-time control for time-critical applications

Robust Isolation Design

• Channel isolation: 32 channels isolated in groups of 16

• High withstand voltage: 2,000 V AC between field outputs and system circuitry

• Protection against field-side electrical noise

Maintenance and Reliability

• Hot-swap support with compatible terminals, enabling module replacement without system downtime

• Dual-redundant configuration ensures continuous operation

• Front-panel LEDs provide immediate status for power, communication, and channel activity

Technical Specifications

Typical Applications

• Direct driving of low-power solenoids

• Status indicators and alarm panels

• Interfacing with high-voltage relays

• Simple duty-cycle control for heating elements in chemical or pharmaceutical plants

FAQ

Q: Can the module be replaced without stopping the system?
A: Yes, hot-swap support allows module replacement while the system is operational.

Q: What is the maximum load per channel?
A: Each channel supports up to 100 mA at 24 V DC.

Q: Does the module support redundancy?
A: Yes, the ADV551-P10 can be configured in a dual-redundant setup for continuous operation.

Q: What output modes are supported?
A: Status (ON/OFF), Pulse Width Output, and Time-Proportional Output.
