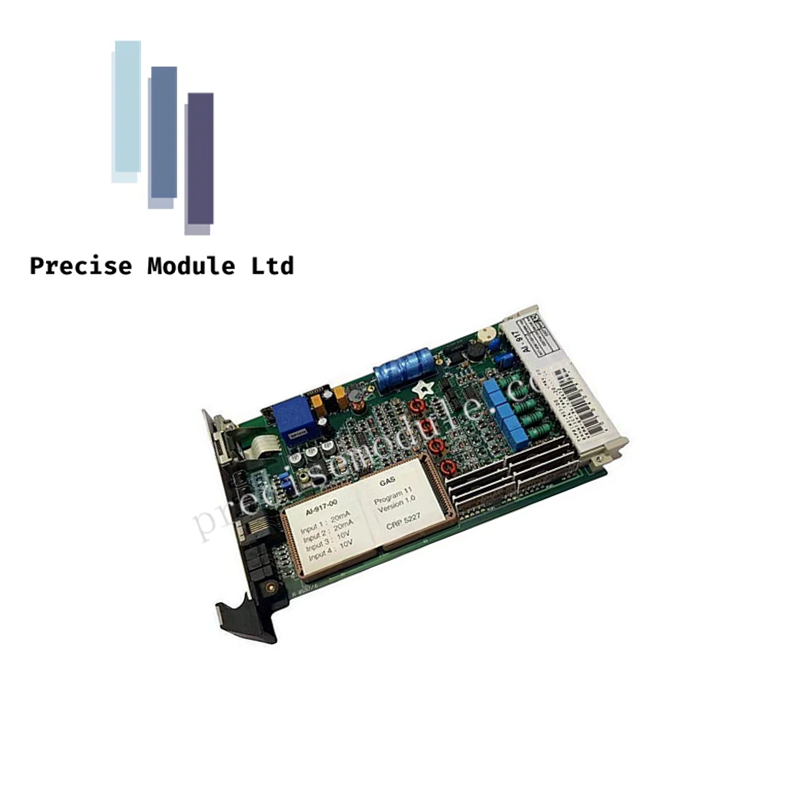

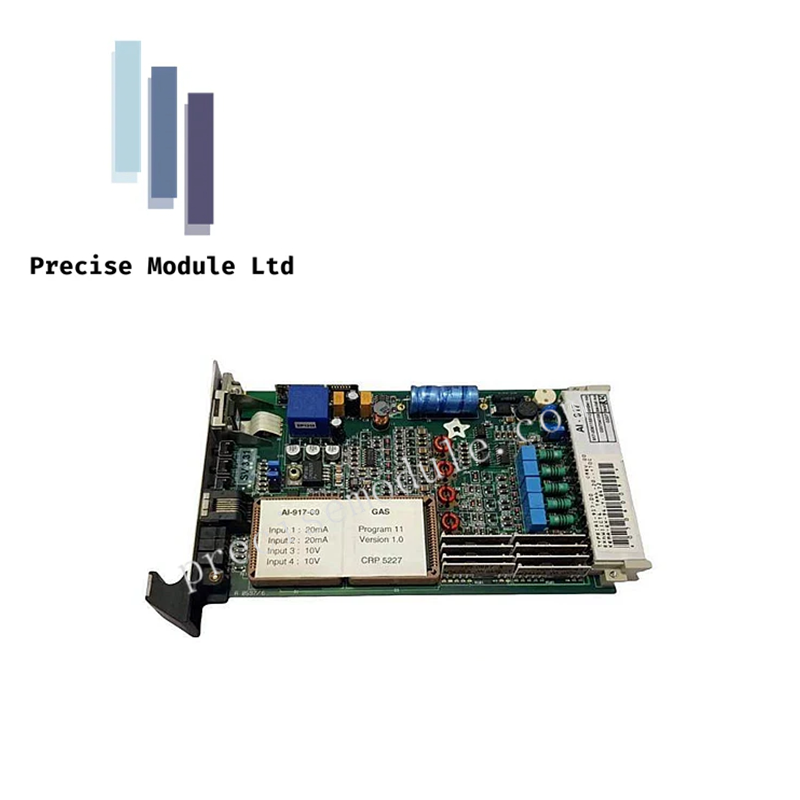

Yokogawa AI-917-00 Analogue Input Module

Description

The AI-917-00 analog I/O module from Yokogawa is engineered for reliable performance in industrial automation systems. It supports both input and output functions and withstands harsh environmental conditions.

Specifications

• Model: AI-917-00

• Manufacturer: Yokogawa Electric Corporation

• Number of Inputs: 4 analog input channels

• Number of Outputs: 4 analog output channels

• Size: Single Euro format 4TE (160 × 100 × 20 mm)

• Connector Type: DIN 41612 Bauform F, 48-pin

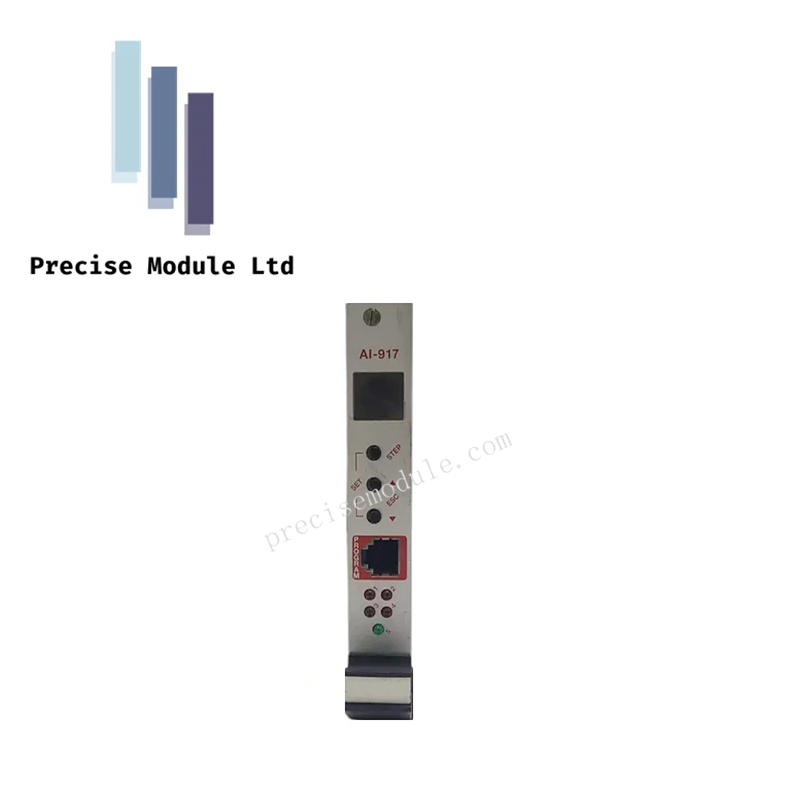

• Identification: Marked “AI-917” on the front panel

• Working Temperature: -10°C to +60°C

• Storage Temperature: -25°C to +85°C

• Relative Humidity: Maximum 75%, non-condensing

• EMI Compliance: NAMUR AK EMV, DIN IEC 801-2 to 801-5

• Shock Resistance: 15g for 11 milliseconds

• Vibration Resistance:

  • 10–55 Hz: 0.075 mm amplitude

  • 57–150 Hz: 1g acceleration (0.076–0.011 mm displacement)

Features

• Dual I/O Capability: Supports four analog inputs and four analog outputs for flexible control.

• Compact Format: Euro 4TE size allows easy integration into standard control racks.

• Robust Connector: Uses DIN 41612 Bauform F for secure and reliable signal transmission.

• Wide Temperature Range: Operates reliably from -10°C to +60°C in industrial environments.

• High Shock Tolerance: Withstands up to 15g impact for enhanced durability.

• Vibration Protection: Maintains stable performance under continuous mechanical vibration.

• EMI Shielding: Complies with NAMUR and IEC standards to prevent electromagnetic interference.

• Clear Identification: Front panel labeling simplifies module recognition and maintenance.
