Yokogawa AIP171 | CENTUM DCS Transceiver Control Module

Product Description

The Yokogawa AIP171 is a dedicated Transceiver Control Module designed to manage and optimize communication across Yokogawa’s V net networks. It serves as the central control unit for V net repeater devices, ensuring high-speed, accurate, and reliable data transmission between distributed network segments in CENTUM CS and CENTUM VP Distributed Control Systems (DCS).

The module is typically mounted in dedicated interface racks or repeater files, playing a critical role in maintaining the deterministic performance required for real-time industrial control.

Key Features

• High-Speed V net Control: Maintains signal integrity across long-distance network segments with a response time of under 100 milliseconds.

• Signal Accuracy: Processes transceiver data with ±1% accuracy to ensure precise control signal transmission.

• Industrial-Grade Design: Provides galvanic isolation between field-side and bus-side circuits to protect central controllers from electrical surges.

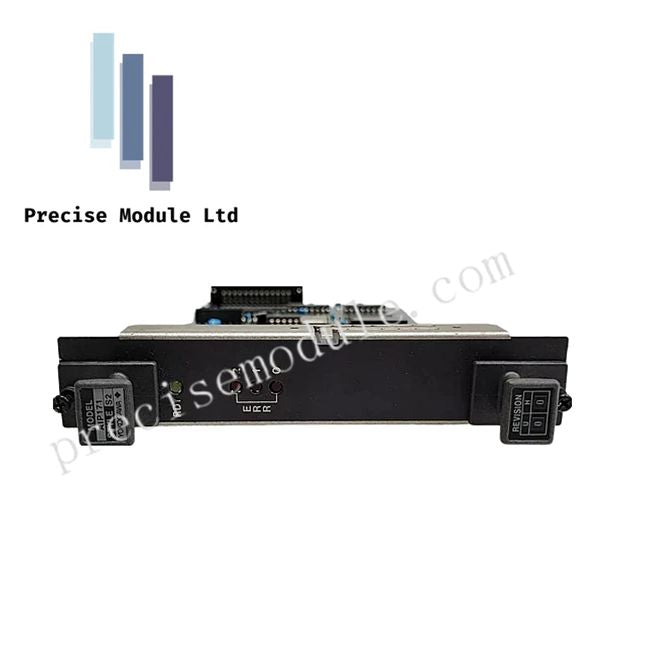

• Real-Time Diagnostics: Equipped with front-panel LEDs showing Power (PWR), Communication Status, and Fault/Error indicators.

• Self-Monitoring: Continuous internal hardware checks alert the system to failures or malfunctions, preventing network downtime.

• Environmental Resilience: Operates in temperatures from −10°C to +60°C and can tolerate non-condensing humidity conditions from 10–90%.

Technical Specifications

Applications

The AIP171 is essential in plants using Yokogawa V net architecture where long-distance communication or signal amplification is required. Typical installations include CENTUM CS and VP networks in chemical, power, and process automation facilities. It allows operators to extend network reach and maintain real-time performance without compromising reliability.

FAQ

Q: What is the primary function of the AIP171?
A: It manages V net transceiver devices to ensure high-speed, accurate data relay for CENTUM DCS networks.

Q: Which DCS systems are compatible with the AIP171?
A: CENTUM CS, CENTUM CS 3000, and CENTUM VP systems.

Q: How fast does the module respond to network signals?
A: It has a response time of less than 100 milliseconds.

Q: Does the module offer diagnostics?
A: Yes, front-panel LEDs indicate power, communication status, and fault conditions, and the module performs continuous self-checks.

Q: What are the operating environmental limits?
A: It supports −10°C to +60°C operation and 10–90% RH non-condensing humidity.
