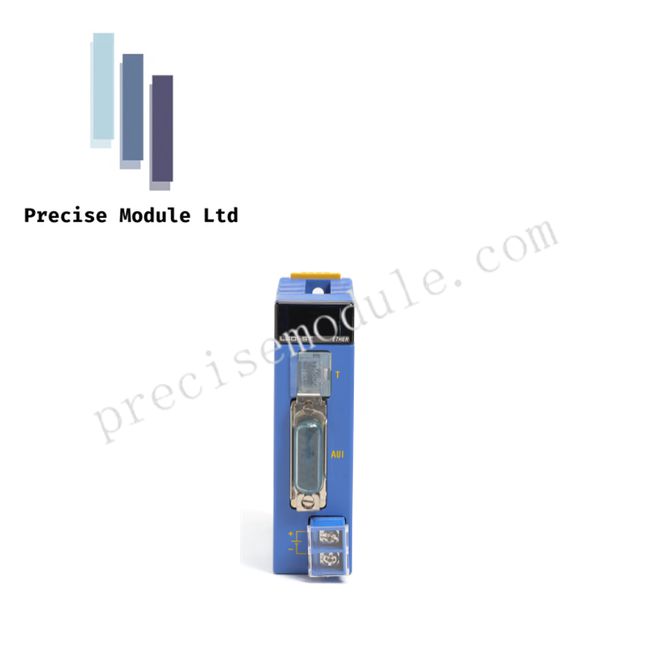

Yokogawa F3LE01-5T FA-M3 PLC Ethernet Module High-Speed Communication

Manufacturer: Yokogawa
Product No.: F3LE01-5T
Condition：in Stock
Product Type: F3LE01-5T
Product Origin: Japan
Payment:T/T, Western Union
Weight: 800g
Shipping port: Shanghai/Yiwu/Shenzhen
Warranty: 12 months

Quantity

Product Description

Overview

The Yokogawa F3LE01-5T is a high-performance Ethernet communication module for the FA-M3 PLC platform. Designed to facilitate fast, reliable data transfer between PLCs, HMIs, PCs, and other networked devices, this module ensures seamless integration of factory-floor automation into modern industrial networks. Its compact design allows installation in a single FA-M3 slot while supporting robust, high-volume communications.

Key Features

High-Speed Network Connectivity

Supports 10BASE-T and 100BASE-TX Fast Ethernet with auto-negotiation
Handles large data volumes with minimal latency for real-time process control

Flexible Multi-Protocol Support

Compatible with TCP/IP, UDP/IP, and FTP for versatile industrial communication
IEEE 802.3 compliant for network stability and interoperability

Concurrent Connections

Supports multiple simultaneous logical sessions, enabling one PLC to communicate with several devices or servers without performance degradation

Easy Integration & Configuration

Configurable through WideField software, allowing IP address assignment and network parameters without manual coding
Plug-and-play installation into FA-M3 base units

Diagnostic & Reliability Features

Front panel LED indicators for Link, Activity, and Status provide instant visual feedback
Compact and energy-efficient design, optimized for industrial control environments

Applications

Real-time communication for FA-M3 PLCs in manufacturing systems
Vertical integration from shop-floor equipment to enterprise systems
Remote monitoring, data logging, and HMI interfacing in industrial plants

Technical Specifications

Feature	Specification
Model Number	F3LE01-5T
PLC Series	FA-M3
Communication Standard	10BASE-T / 100BASE-TX Fast Ethernet
Interface	RJ-45 Connector
Max. Segment Length	100 meters (module to hub/switch)
Current Consumption	Approx. 300–450 mA (depending on load)
Network Topology	Star via Ethernet Switch/Hub
LED Indicators	Link, Activity, Status
Slot Size	Single FA-M3 module slot
Environmental Rating	Industrial-grade, supports standard PLC cabinet conditions

FAQ

Q: Can the F3LE01-5T support multiple devices simultaneously?
A: Yes, it can manage multiple logical connections concurrently without affecting PLC performance.

Q: Which cabling is recommended for industrial environments?
A: Category 5e or higher shielded twisted-pair (STP) cables are recommended to reduce electromagnetic interference.

Q: Is this module compatible with all FA-M3 PLCs?
A: It is designed for standard FA-M3 series controllers; ensure firmware and hardware revisions match for full functionality.

Q: How quickly can it be shipped?
A: Items are typically dispatched within 2 business days after payment confirmation.
