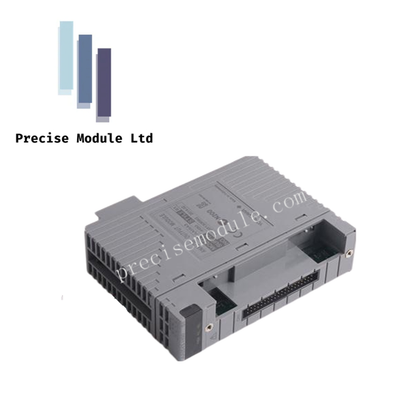

The S9681DB-0 is a digital input/output module developed by Yokogawa for use in CENTUM VP and CS3000 control systems. It supports stable signal transmission and high-density channel configuration.
Specifications
Model: S9681DB-0
Manufacturer: Yokogawa Electric Corporation
Input Channels: 16 points
Output Channels: 32 points
Input Voltage Range: 0–24 V DC
Output Voltage Range: 0–24 V DC
Isolation Method: Photocoupler isolation
Power Consumption: Approx. 2 W
Dimensions: 130 mm × 142.5 mm × 32.8 mm
Weight: Approx. 0.43 kg
Mounting Method: DIN rail or panel
Operating Temperature: 0°C to 50°C
Certifications: CE, UL
Features
Dual Functionality: Combines 16 digital inputs and 32 outputs in one compact module.
Photocoupler Isolation: Enhances signal integrity and protects against electrical noise.
System Compatibility: Integrates seamlessly with Yokogawa’s CENTUM VP and CS3000 platforms.
Compact Design: Saves space in control cabinets and simplifies installation.
Reliable Performance: Maintains stable operation under industrial conditions.
Energy Efficient: Operates with low power consumption for optimized system design.
Global Compliance: Meets CE and UL standards for international deployment.
