roduct Description

Overview

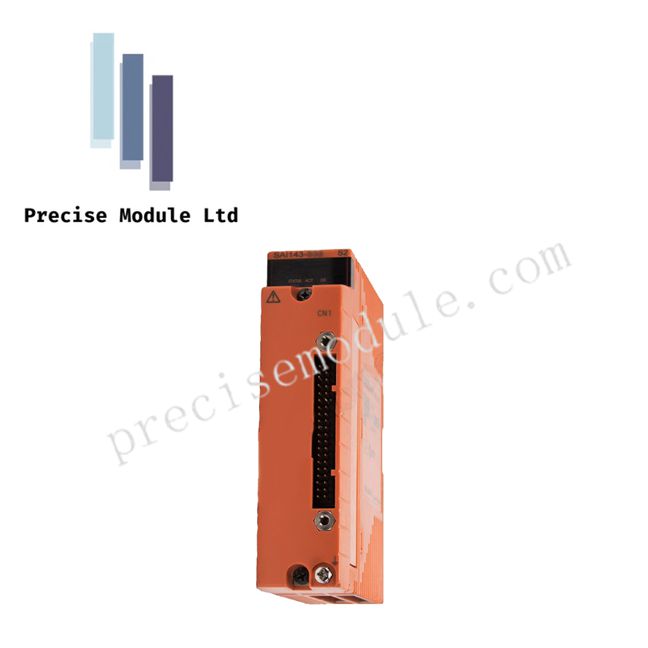

The Yokogawa SAI143-H63 S4 is a 16-channel Analog Input Module engineered for ProSafe-RS and CENTUM VP systems. It provides precise monitoring of continuous process variables such as pressure, temperature, and flow, making it an essential component in safety-critical environments.

Each input channel is fully isolated, minimizing interference and protecting the control system from electrical disturbances. The module accepts standard 4–20 mA DC signals and offers optional HART communication, enabling advanced diagnostics and remote configuration of field transmitters. Its robust design ensures reliable operation in challenging conditions, including corrosive or high-temperature industrial settings.

Key Features

SIL 3 Safety Certification

• Designed for Safety Integrity Level 3 (SIL 3) applications according to IEC 61508.

• Redundant internal architecture and advanced self-diagnostics maintain safe operation even under hardware fault conditions.

HART Communication Support

• Supports HART 5/6/7, allowing remote access to device diagnostics and configuration.

• Transmits HART parameters to asset management systems without interrupting the 4–20 mA signal.

High-Precision Signal Acquisition

• 16 isolated analog channels with ±16 µA accuracy in the 0.05–23 mA range.

• Input impedance of 250 Ω (powered) or ≥500 kΩ (unpowered).

• Fast response time of 40 ms per channel for real-time monitoring.

Loop Monitoring and Fault Detection

• Detects wire breakage, short circuits, and over/under-range signals.

• Ensures signal integrity for mission-critical safety operations.

Redundancy and Maintenance Features

• Can operate in a dual-redundant configuration for uninterrupted safety control.

• Hot-swappable design allows module replacement without shutting down the system.

Technical Specifications

Applications

• Emergency Shutdown (ESD) loops in chemical and petrochemical plants

• Fire & Gas (F&G) safety systems

• Process monitoring in power generation facilities

• High-integrity safety loops requiring continuous analog data

FAQ

Q: Which control systems are compatible with the SAI143-H63 S4?
A: It works with ProSafe-RS and CENTUM VP systems.

Q: How many analog inputs does the module support?
A: The module has 16 isolated analog input channels for 4–20 mA signals.

Q: Does it support HART communication?
A: Yes, HART communication is optional, enabling device diagnostics and remote configuration.

Q: What is the operating temperature range?
A: The module operates reliably between –20°C and +70°C.

Q: What is the delivery timeframe?
A: Brand-new units ship via FedEx/DHL within 3–14 days, depending on order size.

Q: Can the module be replaced without system shutdown?
A: Yes, it supports hot-swappable maintenance for minimal downtime.
