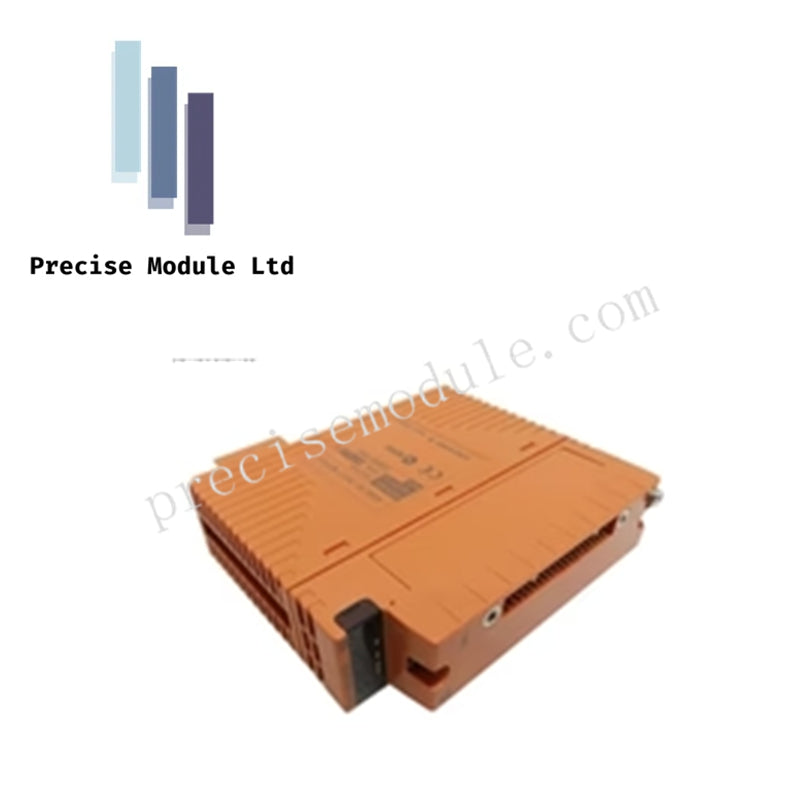

Yokogawa SAV144-S63 | Signal Cable Adapter Module | 16-Channel Terminal Block

Product Overview

The Yokogawa SAV144-S63 is a Signal Cable Adapter Module (also referred to as a Terminal Block or Connection Board) designed for use within the Yokogawa CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). This module provides a crucial interface between the system's I/O modules and external field wiring, facilitating the connection of various field instruments (such as transmitters and valves) to the control system.

The SAV144-S63 is part of the SAV series, which typically handles Analog Input/Output or specialized signal conditioning. It is particularly effective at providing a clean and organized termination point for high-density I/O configurations.

The "SAV" series modules are essential for systems requiring reliable signal conditioning and isolation, ensuring high-performance operation and easy maintenance.

Key Features

• Model: Yokogawa SAV144-S63

• Module Type: Signal Cable Adapter Module / Terminal Block

• Application: Designed for CENTUM VP and CENTUM CS 3000 DCS

• Channels: 16 channels for Analog Input/Output and signal conditioning

• Signal Types: Primarily supports 4-20 mA DC and 1-5 V DC signals

• Mounting: DIN-rail mounting or 19-inch rack-mount plates for easy integration

• Connector Pins: Gold-plated to prevent oxidation in harsh environments

• Weight: Approx. 0.5 kg (lightweight and space-saving)

• Temperature Range: Operates between -20°C to +70°C (-4°F to +158°F)

Technical Specifications

Key Functions

• Signal Isolation: Provides signal isolation, ensuring easy troubleshooting and maintenance without disturbing the DCS rack.

• Compact Design: Saves valuable cabinet space by consolidating 16 channels into a single high-density unit.

• Reliability: Gold-plated connector pins enhance durability and prevent oxidation in harsh industrial environments.

• Standardization: Simplifies wiring by using pre-fabricated cables on the system side, ensuring seamless connectivity and reducing installation complexity.

Environmental Specifications

Applications

The Yokogawa SAV144-S63 is ideal for use in high-reliability applications where I/O termination and signal conditioning are critical. It is typically employed in industrial automation, power plants, chemical facilities, and any environment that relies on the CENTUM VP or CENTUM CS 3000 DCS platforms. By offering 16 high-density channels, the SAV144-S63 module helps organize field wiring, improves system diagnostics, and ensures reliable data transmission between field instruments and control systems.
